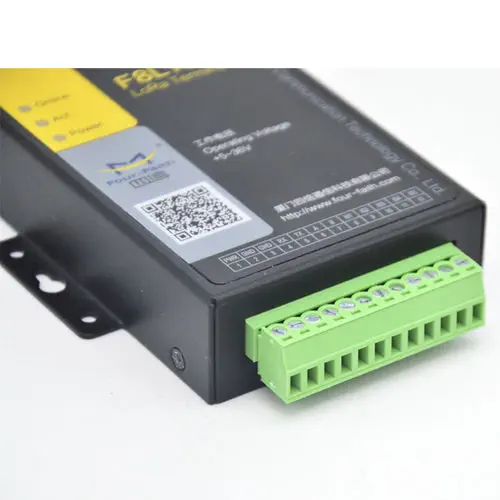

The Four-Faith F8L10T is a high-performance wireless data terminal based on advanced LoRa (Long Range) spread spectrum technology. It is specifically engineered to solve the challenges of long-distance, low-power data transmission in harsh industrial and agricultural environments where traditional cellular (GSM/GPRS) coverage might be cost-prohibitive or physically limited.

Advanced LoRa Communication

Unlike standard radio frequency devices, the F8L10T utilizes LoRa modulation, which significantly enhances receiver sensitivity (up to -140dBm). This allows the unit to maintain reliable communication over distances of up to 8km while remaining highly resistant to environmental interference. It supports multiple frequency bands globally, including 433MHz, 470MHz, 868MHz, and 915MHz, making it a versatile tool for international IIoT deployments.

Industrial Grade Reliability and Connectivity

The F8L10T acts as a transparent bridge between traditional serial devices and a LoRa network. It features both RS-232 and RS-485 interfaces, allowing direct connection to PLCs, smart meters, water level sensors, and weather stations. Its rugged design includes a metal housing with EMC protection, ensuring stable operation within a wide temperature range of -40°C to +85°C. For battery-powered or solar-powered applications, the unit’s multi-level power-saving architecture ensures minimal energy drain during idle periods.

Key Features

• Long Range Transmission: Achieves superior penetration through obstacles and long-distance coverage without cellular data costs.
• Flexible Networking: Supports Point-to-Point, Point-to-Multipoint, and Star network topologies.
• Easy Configuration: Simplifies setup through a dedicated configuration tool or via AT commands.
• Secure Data: Integrated data encryption and checksums to ensure secure and accurate information transfer.

Typical Applications

• Smart Agriculture: Remote monitoring of soil moisture, greenhouse conditions, and automated irrigation.
• Environmental Monitoring: Real-time data acquisition from remote weather stations and air quality sensors.
• Industrial Automation: Wireless bridge for Modbus RTU devices in large-scale factory layouts.
• Smart Utilities: Remote reading of water and gas meters in urban and rural areas.
