Product Specifications
- Manufacturer
- Extech
- Part Number
- MG320
- Type
- Insulation Tester Multimeter
- Test Voltages
- 250V, 500V, 1000V
- Insulation Range
- Up to 20GΩ
- Safety
- CAT IV 600V
- Documents
- Product Manual, Product Specs
Product Description

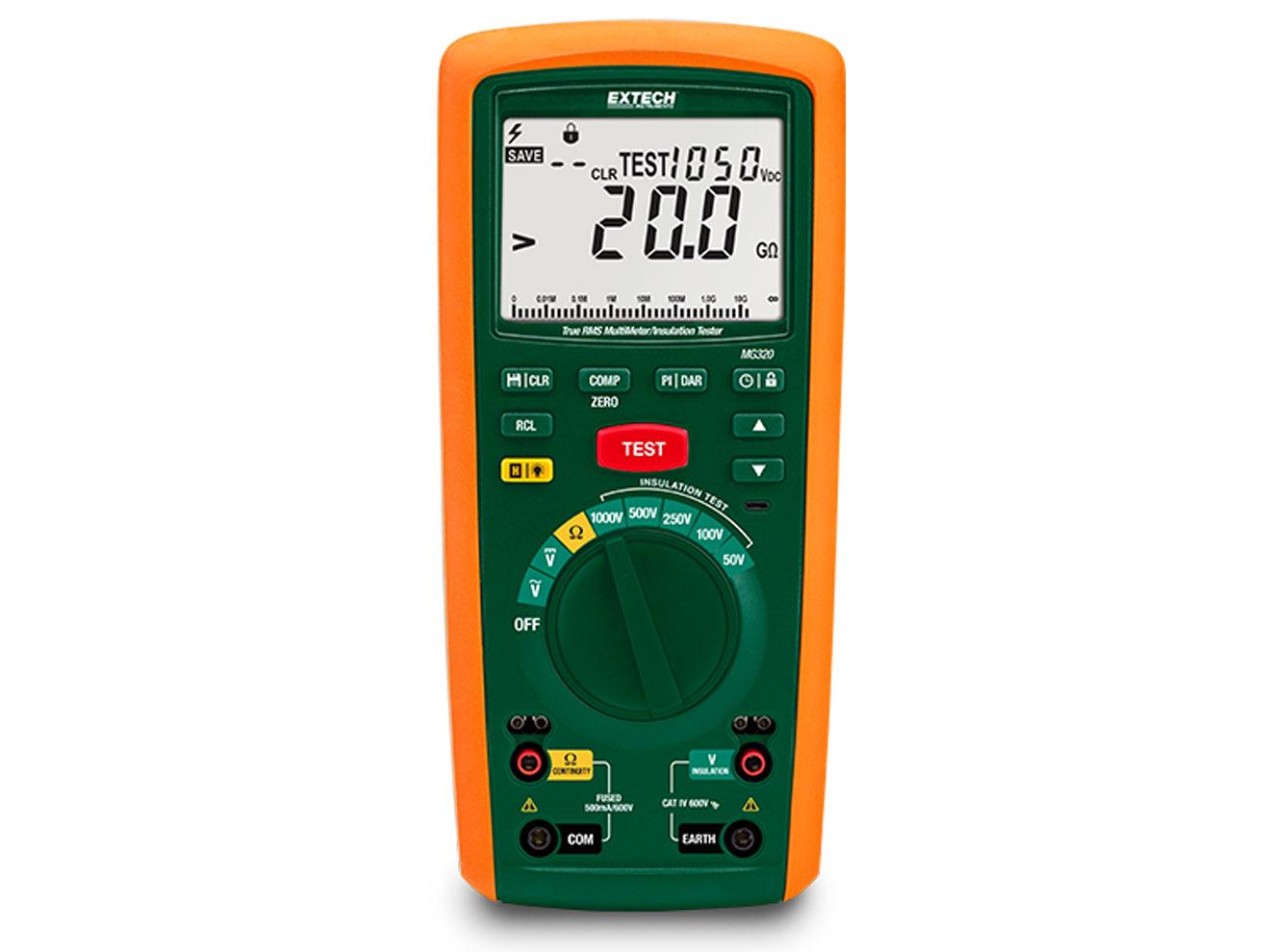

The Extech MG320 Insulation Tester / True RMS MultiMeter combines a 20GΩ/1000V high range Insulation Tester with a full-featured True RMS MultiMeter in a single, compact instrument. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. CAT IV-600V safety rating ensures the highest level of protection. The multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bar graph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.
Extech
Compare
Insulation Tester Multimeter - 20GΩ with PI/DAR | Extech MG320
250V/500V/1000V, 20GΩ, PI/DAR, timer, comparator, CAT IV 600V
MPN/Series: MG320
Product Specifications
- Manufacturer
- Extech
- Part Number
- MG320
- Type
- Insulation Tester Multimeter
- Test Voltages
- 250V, 500V, 1000V
- Insulation Range
- Up to 20GΩ
- Safety
- CAT IV 600V
- Documents
- Product Manual, Product Specs
