Product Specifications
- Manufacturer
- Amprobe
- Part Number
- 34XR-A
- Type
- True RMS Multimeter
- DC Voltage
- 400mV to 1000V ±(0.5% + 1 dgt)
- AC Voltage
- 400mV to 750V ±(1.2% + 8 dgts)
- Documents
- Product Manual, Product Specs
Product Description

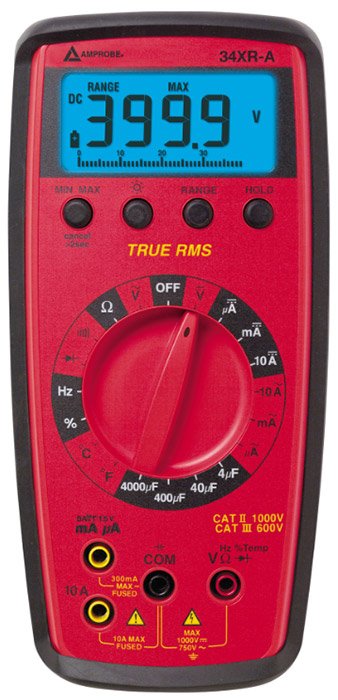

The Amprobe 34XR-A is a True RMS digital multimeter with temperature measurement, designed for contractors and field service technicians. Housed in a Magne-Grip holster with magnetic hanging strap, the meter stays conveniently accessible during work.
The 34XR-A measures DC voltage to 1000V, AC voltage to 750V, AC/DC current to 10A, resistance to 40MΩ, capacitance to 4000μF, frequency to 40MHz, and temperature from -4°F to 1832°F. A 3-3/4 digit LCD with 41-segment analog bar graph provides clear readings. Additional features include continuity beeper, diode test, duty cycle measurement, Min/Max, Data Hold, Range Lock, and input warning tone.
Safety rated CAT II 1000V / CAT III 600V and UL listed, the 34XR-A delivers reliable performance for troubleshooting electrical and electronic systems. It ships with test leads, temperature adapter, Type-K probe, spare fuse, and Magne-Grip holster.
