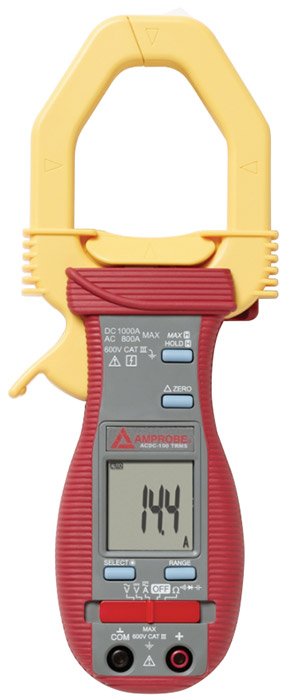

Amprobe ACDC-100 TRMS Clamp Multimeter | 1000A AC/DC Clamp-On Tester

1 / 5

Product Specifications

Manufacturer: Amprobe
Product Number: ACDC-100 TRMS
Product Type: True RMS AC/DC Clamp-On Multimeter
Core Measuring Ranges: AC/DC Current up to 1000A; AC/DC Voltage up to 600V; Resistance up to 40MΩ; Capacitance up to 3000µF
Display: 3-3/4 digit, 4000 count LCD Display with Backlight
Clamp Jaw Capacity: Accommodates conductors up to 50mm (2") in diameter
Core Functions: True RMS Measurement, Continuity Beeper, Relative Zero Mode, Auto Power Off, Data Hold, Max Capture Function, Diode Test
Housing: Rubber Over-Molded Case with Built-In Probe Storage & Test Probe Holder
Standard Accessories: Carrying Case, Test Leads, Batteries, Product Manual
Documents: Product Manual , Product Specs

Product Description

The Amprobe ACDC-100 TRMS 1000A AC/DC clamp-on multimeter measures AC/DC current to 1000 A, AC/DC voltage to 600 volts, resistance to 40 MΩ and capacitance up to 3000 µF. True RMS measurement capabilities deliver accurate readings in noisy electrical environments. The Amprobe ACDC-100 TRMS clamp-on multimeter also features a continuity beeper, relative zero mode, auto power off and data hold functions.

The Amprobe ACDC-100 TRMS 1000 A AC/DC clamp-on multimeter has a 3-3/4 digit, 4000 count LCD display. It accommodates conductors up to 50 mm (2") in diameter and is equipped with a convenient test probe holder. The multimeter is housed in a rubber over-molded case with built-in probe storage.

The Amprobe ACDC-100 1000 A AC/DC clamp-on multimeter ships complete with:

Carrying case
Test leads
Batteries
Product manual

Amprobe ACDC-100 1000 A AC/DC Clamp-on Multimeter Specifications

Feature	Range	Accuracy
DC Voltage
	400.0 mV	0.3% + 3d
	4.000 V, 40.00 V, 400.0 V	0.5% + 3d
	600 V	1.0% + 4d
NMRR:	>50 dB @ 50/60 Hz
CMRR:	>120 dB @ DC, 50/60 Hz, Rs=1kΩ
Input impedance:	10 MΩ, 30 pF nominal (1000 MΩ for 400.0 mV range)
AC Voltage
50 Hz ~ 500 Hz	400.0 mV	4.0% + 4d
50 Hz ~ 60 Hz	4.000 V, 40.00 V, 400.0 V	1.0% + 4d
60 Hz ~ 500 Hz	4.000 V, 40.00 V, 400.0 V	1.5% + 4d
50 Hz ~ 500 Hz	600 V	2.0% + 4d
CMRR:	>60 dB @ DC to 60 Hz, Rs=1kΩ
Input impedance:	10 MΩ, 30 pF nominal
Resistance
	400.0 Ω	0.8% + 6d
	4.000 kΩ, 40.00 kΩ, 400.0 kΩ	0.6% + 4d
	4.000 MΩ	1.0% + 4d
	40.00 MΩ	2.0% + 4d
Open circuit voltage:	0.4 VDC typical
Audible continuity tester
Open circuit voltage:	0.4 VDC typical / 400.0 Ω	1.5% + 6d
Audible threshold:		between 10 Ω and 120 Ω
Diode Tester
	Open circuit less than 1.6 V DC
	Voltage test current (Typical) 0.4 mA
Capacitance
	500.0 nF, 5.000 µF, 50.00 µF 500.0 µF, 3000 µF¹	3.5% + 6d^{2, 3}
1) Additional 50.00 nF range accuracy is not specified
2) Accuracies with film capacitor or better
3) Specified with battery voltage above 2.8 V (approximately half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4 V
DC Current (Clamp-on)
400.0 A	0.0 A ~ 400.0 A	1.5% + 4d^{1, 2}
1000.0 A	400 A ~ 800 A	1.5% + 4d^{1, 2}
	800 A ~ 900 A	2.0% + 4d^{1, 2}
	900 A ~ 1000 A	5.0% + 30d^{1, 2}
1) Induced error from adjacent current-carrying conductor: less than 0.01 A/A
2) Zero mode must be applied to zero the unit before measurement to ensure accuracy. This is particularly important below 20 A
AC Current (Clamp-on)
400.0 A
	15 Hz ~ 40 Hz	2.0% + 5d ¹
	40 Hz ~ 200 Hz	1.5% + 5d ¹
	200 Hz ~ 400 Hz @ less than 50 A ²	1.5% + 5d ¹
	400 Hz ~ 1 kHz @ less than 50 A ²	2.0% + 5d ¹
800 A
	15 Hz ~ 40 Hz @ 400 A ~ 600 A	2.0% + 5d ¹
	40 Hz ~ 100 Hz @ 400 A ~ 600 A	1.5% + 4d ¹
	15 Hz ~ 60 Hz @ 600 A ~ 800 A	5.0% + 30d ¹
1) Induced error from adjacent current-carrying conductor: less than 0.01 A/A
2) Accuracy is specified at less than 50 A in this frequency bandwidth due to limited calibrator output capability for testing

Features

True RMS measurement for accurate readings in noisy environments
Backlit LCD display
AC & DC current measurement up to 1000 A
AC & DC voltage measurement up to 600 V
Capacitance test up to 3000µF
Resistance measurement up to 40 MΩ
Audible continuity beeper
Relative zero mode
Auto power off function
Data hold function
Max capture function
Diode test function
50mm (2") jaw opening for large conductors
Rubber over-molded housing for durability
Built-in probe storage and test probe holder

Resources & Documentation

Amprobe ACDC-100 TRMS Clamp-on Multimeter Datasheet PDF(331 KB)

PDF Document

Amprobe ACDC-100 TRMS Clamp-on Multimeter Manual PDF(7.8 MB)

PDF Document
