Product Specifications
Manufacturer:Fluke Corporation
Product Number:376 FC
Type:True RMS AC/DC Clamp Meter with iFlex
AC Current (Jaw):999.9 A, accuracy 2% ±5 digits
AC Current (iFlex Probe):2500 A, accuracy 3% ±5 digits
DC Current:999.9 A, accuracy 2% ±5 digits
AC/DC Voltage:1000 V, accuracy 1.5% ±5 digits (AC), 1% ±5 digits (DC)
Resistance:60,000 Ω, accuracy 1% ±5 digits
Capacitance:1000 μF, accuracy 1% ±4 digits
Frequency:500 Hz, accuracy 0.5% ±5 digits
iFlex Included:18" flexible current probe
Wireless:Fluke Connect compatible, Bluetooth
Safety Rating:CAT III 1000V, CAT IV 600V
Wire Capacity:750 MCM or 2 to 500 MCM
Documents: Product Manual , Product Specs
Product Description

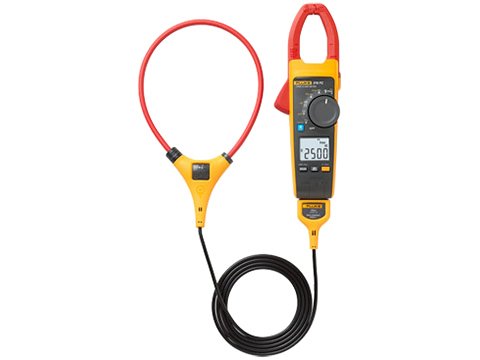

The Fluke 376 FC True RMS clamp meter offers enhanced performance for a wide range of current measurement situations. It measures up to 1000V and 1000A in both AC and DC modes through the standard jaws, and includes an 18" iFlex flexible current probe that expands AC measurement range to 2500A while providing flexibility for awkward conductor sizes .
An integrated low-pass filter and advanced signal processing enable stable readings in noisy electrical environments. Min, max, average, and inrush recording functions capture variations automatically. The meter also measures resistance to 60,000 Ω, capacitance to 1000 μF, and frequency to 500 Hz .
The 376 FC is part of the Fluke Connect wireless tool family, enabling measurement logging and trending, wireless results transmission, and report creation from the field. Bluetooth connectivity allows safe measurements outside the arc flash zone .
The ergonomic design fits comfortably in the hand and can be used while wearing protective gear. Safety ratings are CAT IV 600V and CAT III 1000V .

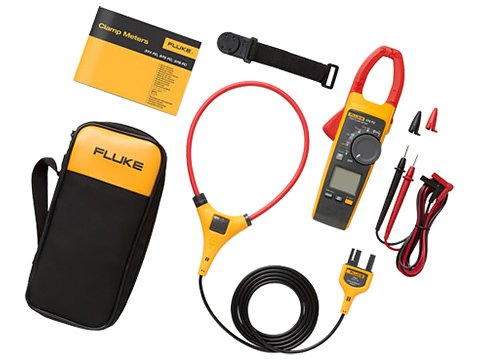

Complete package includes the clamp meter, 18" iFlex probe, TL75 test leads, TPAK magnetic hanging strap, carrying case, 2 AA batteries, and three-year warranty .
