Product Specifications
- Manufacturer
- AECM
- Product Number
- 24-3001
- Product Name
- FlexProbe Flexible Current Probe
- Product Type
- Flexible AC Current Probe
- Flexible Sensor Length
- 24"
- Maximum Measurable Conductor Diameter
- 7.6"
- Dual AC Current Measuring Ranges
- 300AAC, 3000AAC
- Output Signal
- 10mV/A on 300A range; 1mV/A on 3000A range; mV output directly proportional to measured AC current
- Measurement Accuracy
- 1% of Reading ± 500mA
- Conductor Position Influence
- 4%
- Connection Cable
- 14" Double Insulated Cable, Dual Banana Plug Termination for Direct DMM Input
- Battery Life
- Up to 150 Hours
- Status Indicator
- Flashing LED Low Battery Indicator
- Target Applications
- Motor Testing & Troubleshooting, Load Monitoring, HVAC Troubleshooting, Power Analysis, Transformer Testing, Substation Testing
- Documents
- Product Manual , Product Specs (2 Files)
Product Description

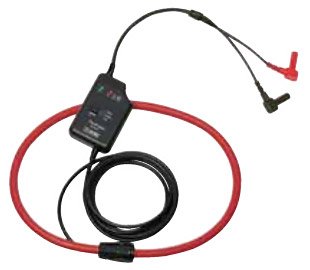

The AECM 24-3001 FlexProbe flexible current probe is composed of a flexible sensor and an electronic module with a 14" double insulated cable. The flexible sensor is designed to fit around large and small conductors, and is capable of accessing tight or difficult-to-reach spaces. This probe is ideal for measuring AC current in a group of conductors.
AECM 24-3001 FlexProbe Flexible Current Probe Applications
- Motor testing and troubleshooting
- Load monitoring
- HVAC troubleshooting
- Power analysis
- Transformer testing
- Substation testing
Features
- 24" flexible sensor fits conductors up to 7.6" in diameter
- Dual measurement ranges of 300A and 3000AAC
- Read amperage directly on DMM display
- mV output directly proportional to AC current measured
-
Output specification:
- 10mV/A on 300A range
- 1mV/A on 3000A range
- Accuracy of 1% of Reading ± 500mA
- 4% influence of conductor position in jaw
- Up to 150 hour battery life
- Dual banana plug termination for direct input into DMMs
- Flashing LED low battery indicator
AECM 24-3001 FlexProbe Flexible Current Probe | 300A/3000A AC DMM Probe
