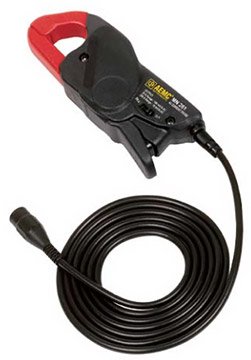

The AEMC MN261 AC current probe is the latest in compact AC current probes designed to meet the most stringent demands in industrial and electrical contracting. Model MN261 meets EN 61010, 600V, Cat. III safety standards, and is CE Marked and UL approved in Canada and the United States.

The MN261 has a 0.78" (20mm) jaw opening and accommodates conductors up to 250MCM. The unique hooked jaw design facilitates clamping and hooking onto conductors. Polycarbonate materials and ultrasonic welding are used throughout to ensure ruggedness and overall lasting reliability.

The MN261 is designed for use with DMMs, loggers, recorders and oscilloscopes. It uses tape-wound cores to further improve its high and low end performance. Rated at 200Arms, it has a measurement range up to 240Arms.

AEMC MN261 AC Current Probe Applications

• Measuring in breaker panels
• Industrial loads testing
• HVAC system testing
• Residential and commercial site work
• Data logging/recording

Features

• Measurement range of 0.1 to 24A, 0.5 to 240Aac
• Large jaw opening accommodates conductors up to 250MCM
• 40Hz to 10kHz frequency response
• 100mVac/Aac – 10mVac/Aac output signals
• Double Insulation design
• CE Mark certified
• Designed to EN 61010, 600V Cat. III safety standard
• UL approved for Canada and the United States
• Hooked jaw design for easy conductor access
• Tape-wound cores for enhanced high and low end performance
