Product Specifications
- Manufacturer
- Fluke
- Product Number
- T5-600 / T5-1000
- Type
- OpenJaw Electrical Tester
- OpenJaw Current
- 0-100A, resolution 0.1A
- Voltage Measurement
- 0-600V AC/DC (T5-600), 0-1000V AC/DC (T5-1000)
- Resistance
- 0-1000Ω
- Continuity Threshold
- Beeper on <25Ω, off >400Ω
- Operating Temperature
- -10 to 50°C (14 to 122°F)
- Safety Rating
- CAT III 600V/1000V, CAT IV 600V
- Features
- Auto-off, dust/water resistant, detachable SlimReach probes
Product Description

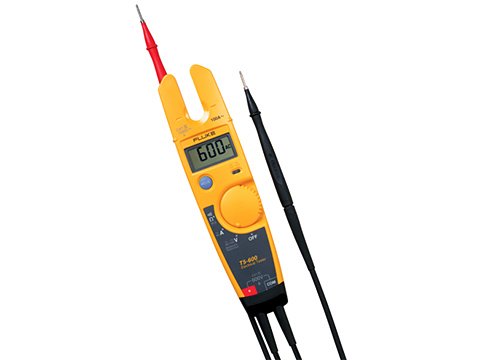

The Fluke T5 electrical testers combine voltage, continuity, and current measurement in one compact tool. Simply select volts, ohms, or current and the tester does the rest. OpenJaw technology measures current up to 100A without breaking the circuit. Available in 600V and 1000V models: T5-600 measures to 600V AC/DC, T5-1000 measures to 1000V AC/DC. Resistance displayed to 1000Ω.
Continuity beeper on below 25Ω, off above 400Ω. Test leads stow neatly in the back; detachable SlimReach probes are customized for national electrical standards. Auto-off mode conserves battery life. Dust and water resistant. CAT III 600V/1000V, CAT IV 600V safety ratings. Accepts optional accessories such as clips and specialty probes.
Resources & Documentation
OpenJaw Voltage/Continuity/Current Tester - 100A | Fluke T5 Series
Product Specifications
- Manufacturer
- Fluke
- Product Number
- T5-600 / T5-1000
- Type
- OpenJaw Electrical Tester
- OpenJaw Current
- 0-100A, resolution 0.1A
- Voltage Measurement
- 0-600V AC/DC (T5-600), 0-1000V AC/DC (T5-1000)
- Resistance
- 0-1000Ω
- Continuity Threshold
- Beeper on <25Ω, off >400Ω
- Operating Temperature
- -10 to 50°C (14 to 122°F)
- Safety Rating
- CAT III 600V/1000V, CAT IV 600V
- Features
- Auto-off, dust/water resistant, detachable SlimReach probes
