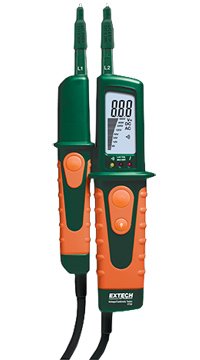

The Extech VT30 Digital Voltage Tester features a backlit LCD display with bargraph for testing AC voltage from 0 to 480V and DC voltage from 0 to 690V. The large, easy-to-read display provides clear voltage indications at specific levels: 6V, 12V, 24V, 50V, 230V, 400V, and 480/690V .

Polarity detection uses separate LEDs for both positive and negative DC detection, making it easy to identify circuit polarity. The continuity test provides an audible tone for quick circuit verification. Two-handed operation enables low impedance testing, which helps eliminate ghost voltages and provides more reliable readings in real-world applications .

A built-in flashlight illuminates tight or dark work areas, such as inside panels, junction boxes, and under equipment. Importantly, the voltage function operates without batteries, ensuring the tester remains functional even if batteries are depleted—a critical safety feature for electrical testing .

The rubberized double-molded housing provides IP64 protection against dust and water splashes, making it suitable for harsh job site conditions. The tester meets IEC1010-1 safety standards with CAT IV 600V and CAT III 1000V ratings, offering comprehensive protection for a wide range of electrical testing applications .
