The Fluke 2062 Advanced Pro Wire Tracer Kit troubleshoots energized and de-energized wires in residential, commercial, and industrial environments up to CAT IV 600V—the highest protection available on any wire tracer. It protects against transient overvoltage spikes up to 8,000V that can occur in industrial and utility environments where critical equipment cannot be taken offline .

The patented Smart Sensor, available only on the Fluke 2062, makes wire tracing faster by locating and displaying energized wires within walls, floors, and ceilings on a high-resolution 3.5-inch TFT LCD color display. Embedded help screens make the display easy to use for both novices and experts. While the tip sensor provides an audible tone when locating wires, the Smart Sensor helps visualize and pinpoint the orientation of energized wires, eliminating guesswork .

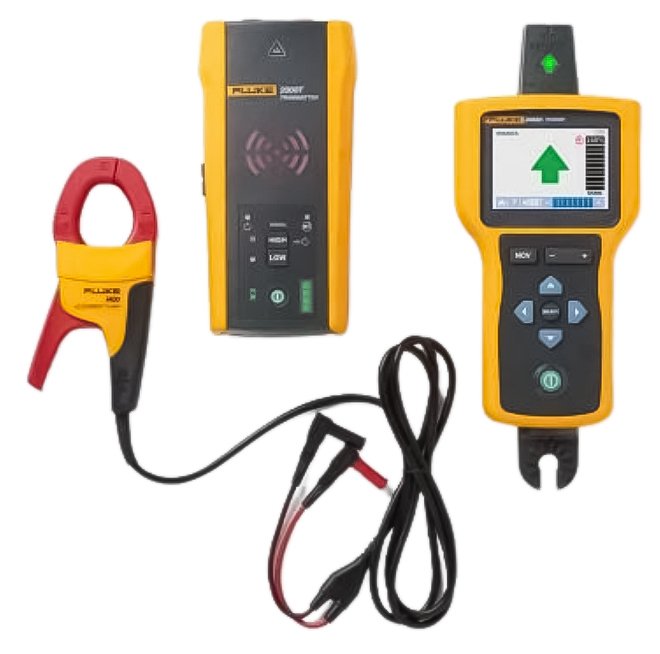

The 2062-R Receiver detects signals using four tracing modes: Smart Sensor mode for energized wire detection and visualization; Tip Sensor mode for more precise detection; Breaker mode for easy breaker and fuse identification; and Non-Contact Voltage mode for tracing energized wires without the transmitter. The receiver features eight sensitivity levels for maximum flexibility and accuracy .

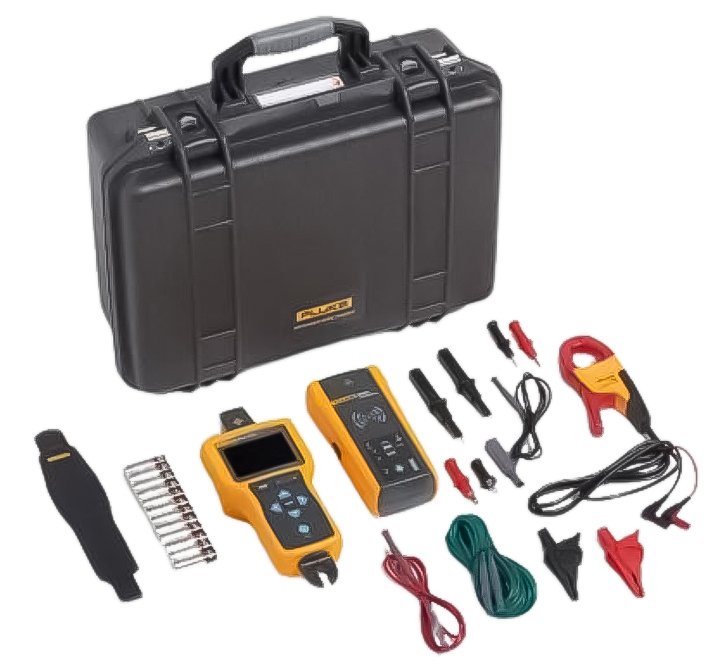

The 2000-T Transmitter works on energized and de-energized circuits with three power modes: High mode for normal circuits, Low mode for precision tracing to reduce coupling to nearby wires, and Loop mode for closed loop de-energized circuits. Two output frequencies automatically sense whether the system is energized (6.25 kHz) or de-energized (32.768 kHz). The complete kit includes the receiver, transmitter, AC current clamp, test lead accessory kit, Smart Strap magnetic hanger, premium hard carrying case, and all necessary batteries .
