Product Specifications
- Manufacturer
- Amprobe
- Part Number
- 35XP-A
- Type
- Digital Multimeter
- DC Voltage
- 400mV to 1000V ±(0.5% + 1 dgt)
- AC Voltage
- 400mV to 750V ±(1.5% + 5 dgts)
- Documents
- Product Manual, Product Specs
Product Description

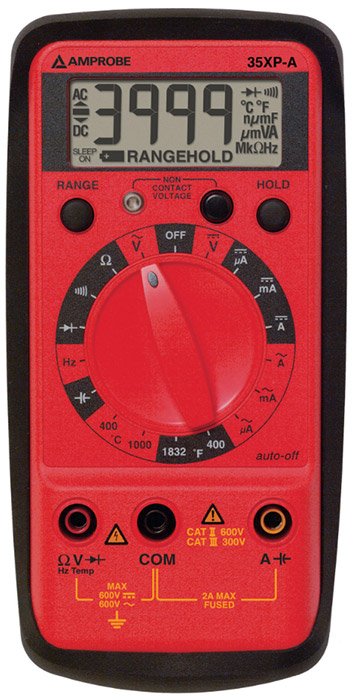

The Amprobe 35XP-A is a compact, full-featured digital multimeter ideal for plant maintenance, HVAC, electrical, and electronic applications. It offers the highest voltage rating in its class, with CAT I 1000V, CAT II 600V, and CAT III 300V safety ratings.
The meter measures AC voltage to 750V, DC voltage to 1000V, AC and DC current to 2A, resistance to 40MΩ, capacitance to 4mF, frequency to 1MHz, and temperature from -4°F to 1832°F via Type-K thermocouple. A VolTect non-contact voltage indicator senses voltages from 70 to 600VAC. Additional features include continuity beeper, diode test, overload protection, Data Hold, and a 3-3/4 digit LCD display.
Supplied with a Magne-Grip holster with magnetic hanging strap, test leads, Type-K thermocouple probe, temperature adapter, and fuse, the 35XP-A keeps tools conveniently accessible while delivering reliable measurements for a wide range of applications.
