Product Specifications
- Manufacturer
- Fluke
- Part Number
- FLUKE-77-4
- Type
- Digital Multimeter
- Accuracy
- 0.3% DC basic
- Display
- Backlit, 6000 count
- Measurements
- AC/DC voltage to 1000V, AC/DC current to 10A, resistance to 50MΩ, capacitance to 9,999µF, frequency to 99.99kHz
- Safety
- CAT III 1000V / CAT IV 600V
Product Description

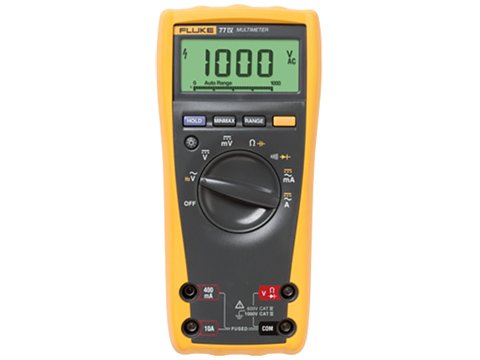

The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems. This Fluke digital multimeter features the ability to measure frequency and capacitance, resistance and continuity, a wide 1000 V measurement range, and 0.3% accuracy.
Other features of Fluke 77 IV digital multimeters include a large display with a backlight for dimly lit areas, min/max recording for signal fluctuations, ergonomic over-molded housing with integrated probe holders, and auto/manual ranging. The Fluke 77 IV also meets CAT III, 1000V and CAT IV, 600V safety standards.
Fluke 77 IV digital multimeters come standard with TL75 test leads, a 9V battery (installed), and user's manual.
