Product Specifications

Product Description

The SITOP PSU8200 6EP3446-8SB00-0AY0 is a three-phase DIN rail power supply that delivers 48 V DC at 10 A, or 480 W, from a 400 to 500 V AC supply. The wide-range input accepts 320 to 575 V AC, draws 1.2 A at 400 V and 1 A at 500 V, and holds the output for 15 ms when the mains drops at 400 V. A three-pole miniature circuit breaker of 6 to 16 A, characteristic C, protects the feeder.

Output voltage is 48 V DC with a 3 percent overall tolerance and a 42 to 56 V adjustment range set by potentiometer, capped at 480 W. Rated current is 10 A over 0 to 10 A, with 2 percent per kelvin derating between 60 and 70 °C. Response delay is 2.5 s, and the output rises within 500 ms without overshoot.

A switchable characteristic sets the response to overload. In constant-current mode the output holds about 11 A during a short circuit, which lets motor inrush settle; latching shutdown suits a stalled motor or a shorted winding. Overload capability is 150 percent of rated current for 5 s per minute, and a short circuit delivers 30 A for 25 ms. Two units can be paralleled for 20 A.

Efficiency is 94 percent and power loss is 31 W at rated load. The 70 × 125 × 125 mm housing weighs 1.2 kg, snaps onto DIN rail EN 60715 35×7.5/15 and needs 50 mm clearance above and below. Operation is −25 to +70 °C by natural convection, with 5 to 95 percent humidity under climate class 3K3. Approvals cover CE, cULus to UL 508 and CSA C22.2 No. 107.1, CB, EAC, RCM, ABS and DNV GL; protection is IP20, Class I.

Siemens
Compare

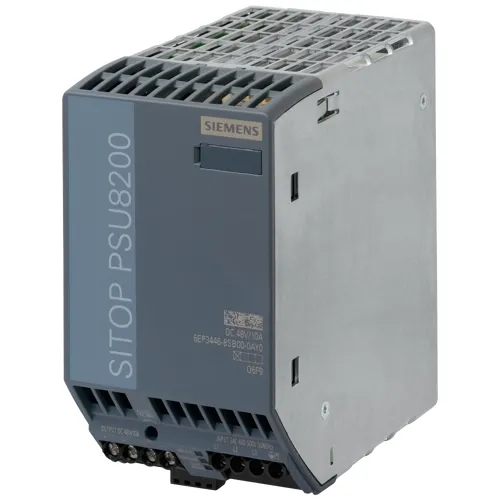

Siemens SITOP PSU8200 6EP3446-8SB00-0AY0 48 V 10 A Power Supply

3-phase 400-500 V AC, 48 V 10 A, 480 W, 94 percent
MPN/Series: 6EP3446-8SB00-0AY0

Product Specifications

Brand
Siemens
Part Number
6EP3446-8SB00-0AY0
Series
SITOP PSU8200
Type
Stabilized Power Supply
Input Voltage
400–500 V AC, 3-phase (320–575 V AC range)
Output Voltage
48 V DC (adjustable 42–56 V)
Rated Current
10 A
Rated Power
480 W
