The Time Electronics 1070 capacitance decade box offers high accuracy across several ranges: from 100pF to 10µF. Each of these ranges are measured within a 1% basic accuracy. The 5-digit thumbwheel switch enables simple and precise setting of the capacitance value. The 1070 is suitable for applications in industry and education.

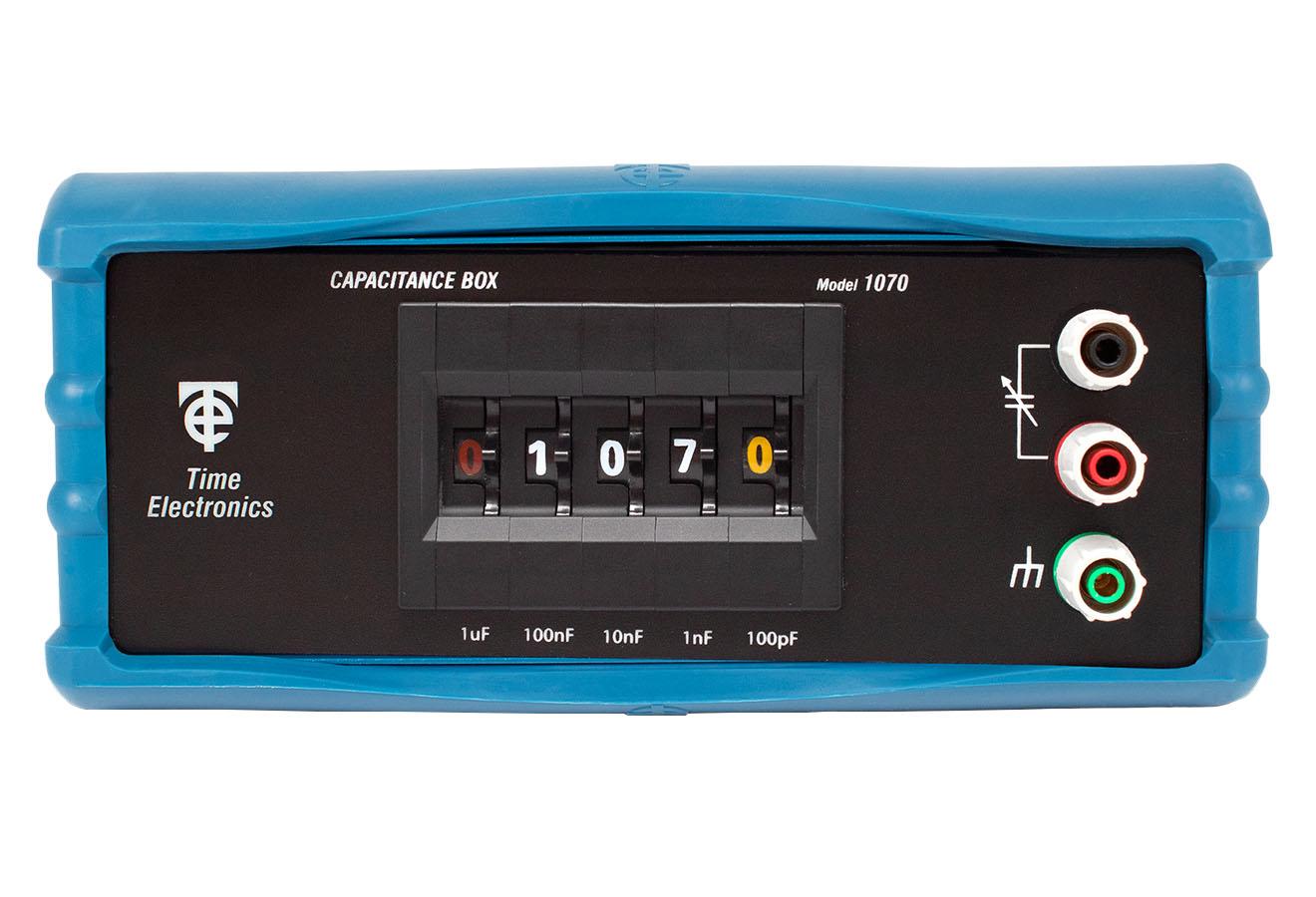

Features include an in-line read-out and color-coded digits: µF = Red, nF = White, pF = Yellow. The 1070 has three 4mm binding posts and a third terminal to enable the case to be connected to either output or earth. The case itself is constructed of metal to provide complete screening and has a residual capacitance of approximately 40pF. Bi-polar working is supported.

The 1070 is compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.

Key Features

• Ranges: 100pF to 10µF
• Accuracy: 1%
• Resolution: 100pF steps (9 steps per decade)
• Residual capacitance: approximately 40pF
• 5-digit thumbwheel switch with in-line readout
• Color-coded digits: µF = Red, nF = White, pF = Yellow
• Fully screened metal case
• Three 4mm binding posts with case terminal
• Bi-polar working capability

Applications

• Educational electronics laboratories
• Industrial testing and calibration
• Capacitance sensor simulation
• Filter circuit development
