Product Specifications
- Manufacturer
- Extech
- Product Number
- SD200
- Type
- 3-Channel Thermocouple Data Logger
- Channels
- 3 Type-K temperature channels
- Display
- Triple LCD simultaneously displays all 3 channels
- Temperature Range
- -58 to 2372°F (-50 to 1300°C)
- Accuracy
- ±(0.5% + 1°F)
- Data Logging
- SD card with date/time stamps, Excel format
- Memory
- 2,000,000 readings with 2G SD card
- Sampling Rate
- Selectable: 5, 10, 30, 60, 120, 300, 600 seconds or Auto
- Included Accessories
- 6 AAA batteries, 2G SD card, AC adapter, 3 bead type K probes, mounting bracket
- Documents
- Product Manual, Product Specs
Product Description

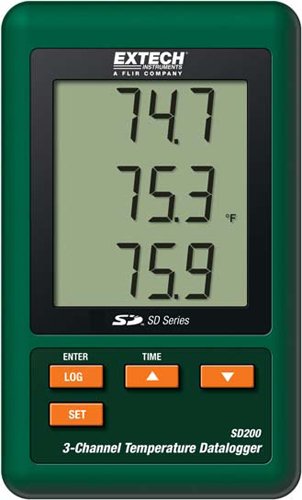

The Extech SD200 temperature data logger features a triple LCD that simultaneously displays three Type-K temperature channels. The data logging function of the SD200 offers date and time stamps and stores up to 2,000,000 readings on an SD card in Excel format for easy transfer to a PC.
With an overall temperature range of -58 to 2372°F, Extech SD200 temperature data loggers feature an accuracy of ±(0.5% + 1°F). The selectable data sampling rate allows you to choose between 5, 10, 30, 60, 120, 300, 600 seconds or auto.
The unit comes complete with 6 AAA batteries, 2G SD card, AC adapter, 3 bead type K probes, and mounting bracket.
