Product Specifications
- Manufacturer
- GF Signet
- Product Number
- 2870, 2872, 2873, 2874
- Type
- Conductivity/Resistivity Electrode
- Cell Constants
- 0.01 (2870), 0.1 (2872), 1.0 (2873), 10.0 cm-1 (2874)
- Electrode Material
- 316L Stainless Steel
- Temperature Sensor
- Integral Pt1000 on coaxial types 2870-2873
- Accuracy
- +/-2% standard; certified +/-1% with calibration certificate
- Process Connection
- 3/4 inch NPT
- Models 2870-2873
- Coaxial, PTFE insulation, polypropylene connection, integral Pt1000
- Model 2874
- Parallel electrodes, CPVC body and connection, PTFE insulation, 316L thermowell
- Cable
- 15 ft (4.6 m) or 25 ft (7.6 m) integral
- Documents
- Product Manual, Product Specs
Product Description
0.01, 0.1, 1.0 and 10.0 cm-1: four constants, one per electrode model. The constant sits in the ordering code, not the product name, so the name alone does not say which conductivity an electrode suits. The 2870 takes 0.01, the 2872 takes 0.1, the 2873 takes 1.0, and the 2874 takes 10.0. Standard accuracy is +/-2%. A certified +/-1% version comes with a certificate.
The compensation path differs by model

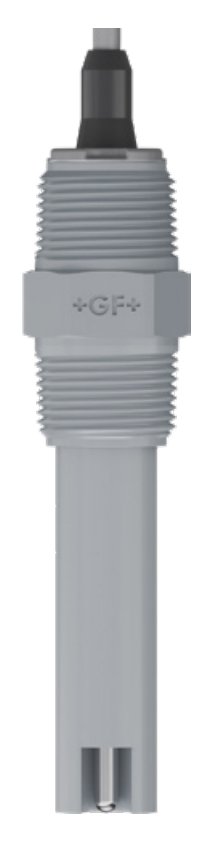

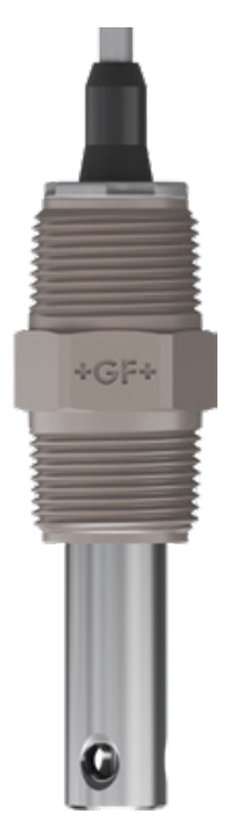

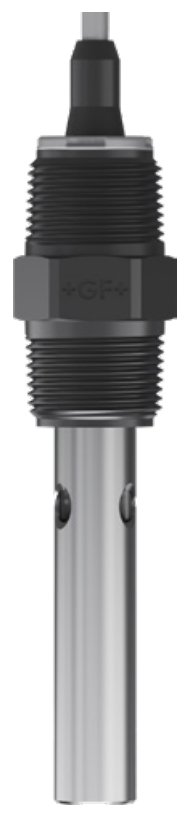

The coaxial 2870, 2872 and 2873 use 316L sensing elements with PTFE insulation and a polypropylene process connection. An integral Pt1000 handles temperature compensation in those three. The 2874 is a parallel-electrode build for the 10.0 cm-1 range, with a CPVC body and connection, PTFE insulation and a 316L thermowell that senses the temperature itself. The two families therefore reach a compensated reading by different routes, and a parameter set moved from one to the other does not carry over: the coaxial types read temperature through a Pt1000 sitting inside the electrode body right beside the sensing element, while the parallel type reads it through the well that also holds the element, so the two see the medium at different points and respond at different speeds when the temperature moves. Connection is 3/4 inch NPT. Integral cable comes in 15 ft (4.6 m) and 25 ft (7.6 m); the longer one is an option rather than the standard length, and the maker does not allow the cable to be spliced on site.
The vent holes must face the flow, or trapped air drifts the low end of the range. Stated media: pure and ultrapure water, seawater, rinse water, chemical solutions. No thermowell is published for the coaxial types; the parallel model is no guide when fitting them.
