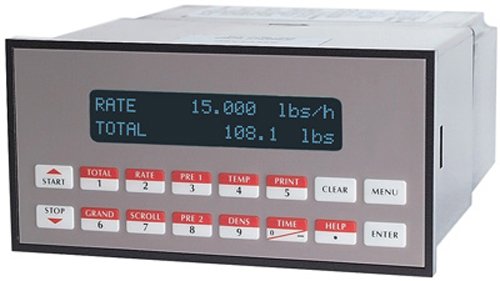

The KEP ES-747 SUPERtrol-I flow computer satisfies the instrument requirements for pulse producing flowmeters in liquid and gas applications. Multiple flow equations, instrument functions, and other advanced features are available in the ES-747 SUPERtrol-I. The alphanumeric display shows measured and calculated parameters in an easy to understand format with single key direct access to measurements and display scrolling .

The various hardware inputs and outputs can be "soft" assigned to meet a variety of common application needs. The user "soft selects" the usage of each input/output while configuring the instrument. The isolated analog output can be chosen to follow volume flow, corrected volume flow, mass flow, temperature, pressure or density by means of a menu selection .

The ES-747 supports pulse producing flowmeters with rate/total and batching functions. It features Universal Viscosity Curve (UVC) and Strouhal/Roshko advanced linearization methods, as well as 10 selectable fluid tables. Advanced batching features include overrun compensation and print end of batch. The unit is equipped with a standard RS-232 port (RS-485 optional) and offers isolated pulse and analog outputs. Windows setup software, DDE server, and HMI software are available for comprehensive system integration .
