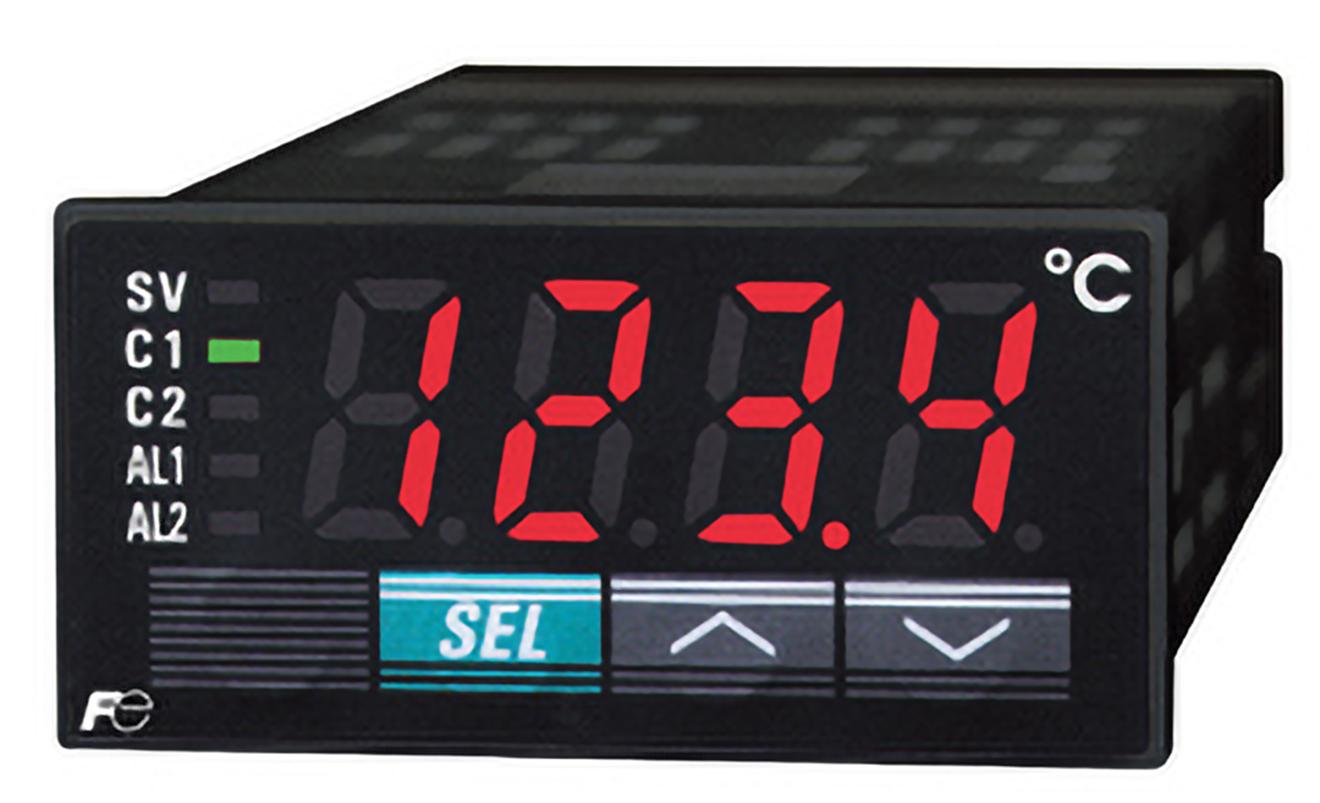

The Fuji PXR3 temperature controller is an advanced, 1/32 DIN temperature and process controller. Designed for a wide range of applications, the PXR4 not only includes auto-tuning and fuzzy control, but also features self-tuning - an innovation in the control field. Self-tuning automatically re-tunes the controller under certain conditions, without the need to revert to auto-tuning.

The PXR3 accepts process and temperature inputs and offers a choice of three kinds of outputs to meet a wide variety of needs in the process industries. Single or dual outputs include relay, SSR driver, or 4-20mA. The controller's standard 8-segment ramp/soak feature has been expanded to include two patterns that can be linked to create a 16-step profile.

One of the most impressive features of the PXR3 is the large LED display. The faceplate, designed for NEMA 4X (IP66 equivalent) is watertight and corrosion-resistant. The easy-to-use 3-button keypad makes programming quick and easy. The screw-terminal on the back further reduces the cost by eliminating the need for sockets.

Remote monitoring of up to 31 PXR series controllers at a time is possible with the RS485 option that uses the industry-standard Modbus protocol. The communications option comes with free Windows-based software, PXR-LITE. The software allows you to program PXR series controllers from the PC and view real-time data and trend graph while logging the data on to a text file.

A powerful tool for the OEM customer is the Program Loader option with Windows-based software. Programs for different applications can be saved to and from Fuji temperature PXR series controllers.
