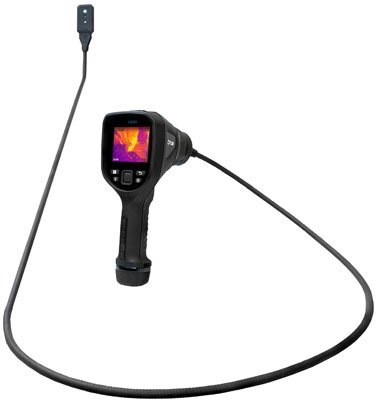

Thermal Videoscope - 160x120 IR, 2m Probe | FLIR VS290-32

1 / 5

Product Specifications

Manufacturer: FLIR Systems
Product Number: VS290-32
Type: Industrial Thermal Videoscope
IR Resolution: 160 × 120 pixels
Temperature Range: -10 to 400°C (14 to 752°F)
Accuracy: 0-100°C: ±3°C; 100-400°C: ±3%
Thermal Sensitivity (NETD): <100 mK
Spectral Range: 7.5 to 14 µm
Field of View (FOV): 57° × 44°
Image Enhancement: MSX® (Multi-Spectral Dynamic Imaging)
Visual Camera: 2 MP with LED worklight
Probe Length: 2 meters (6.6 ft)
Probe Tip Size: 11 mm rectangular (side-viewing)
Display: 3.5-inch LCD, 320 × 240 pixels
Image Frequency: 8.7 Hz
Storage: Removable 16 GB SD card, radiometric JPEG
Connectivity: USB Type-C for data transfer/power
Battery Life: >5 hours (full brightness with worklight)
Battery Type: Rechargeable 3.7V Li-ion (two included)
Safety Rating: CAT IV 600V
Ingress Protection: Probe tip: IP67; Main unit/cable: IP54
Complete Kit Weight: 13 kg (28.66 lb)
Documents: Product Manual , Product Specs

Product Description

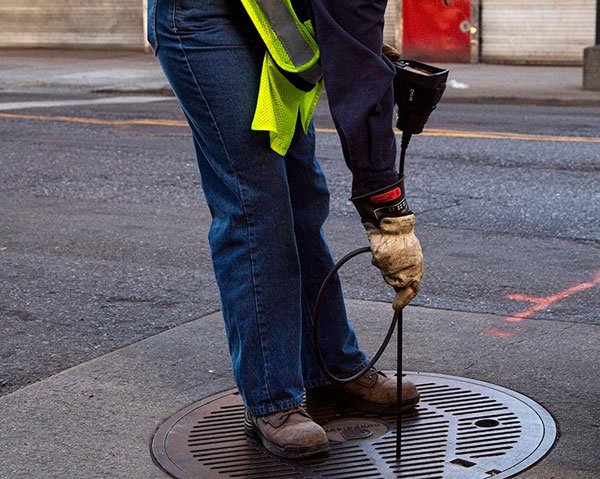

The FLIR VS290-32 is an industrial thermal and visual videoscope designed for safe inspection of difficult-to-access locations, particularly underground electrical distribution vaults. Its 2-meter flexible probe allows inspection through small openings while maintaining a safe distance from hazards.

The system combines a 160×120 true thermal imager with a 2 MP visible light camera and FLIR MSX® (Multi-Spectral Dynamic Imaging) technology, which embosses visible scene details onto the thermal image for enhanced clarity and identification of potential issues before failure occurs. The thermal sensitivity is <100 mK with a spectral range of 7.5 to 14 µm.

Temperature measurement range is -10 to 400°C (14 to 752°F) with accuracy of ±3°C from 0 to 100°C and ±3% from 100 to 400°C. The probe tip features a side-viewing 11 mm rectangular camera with built-in LED worklight for dark environments.

The 3.5-inch color LCD display (320×240 pixels) provides clear viewing with multiple color palettes including iron, rainbow, gray, and alarm-based isotherms. Images and videos are saved as radiometric JPEGs on the included 16 GB SD card and can be transferred via USB-C to a PC for analysis using FLIR Thermal Studio software .

Safety and durability are paramount: the system carries a CAT IV 600V safety rating for high-voltage electrical work, with IP67 protection for the probe tip and IP54 for the main unit and cable. It operates from -10 to 50°C and withstands 25g shock and 2g vibration.

The complete kit includes the videoscope display, MSX camera probe, two rechargeable Li-ion batteries, battery charger, 16GB SD card, USB cable, wrist strap, and hard carrying case.
