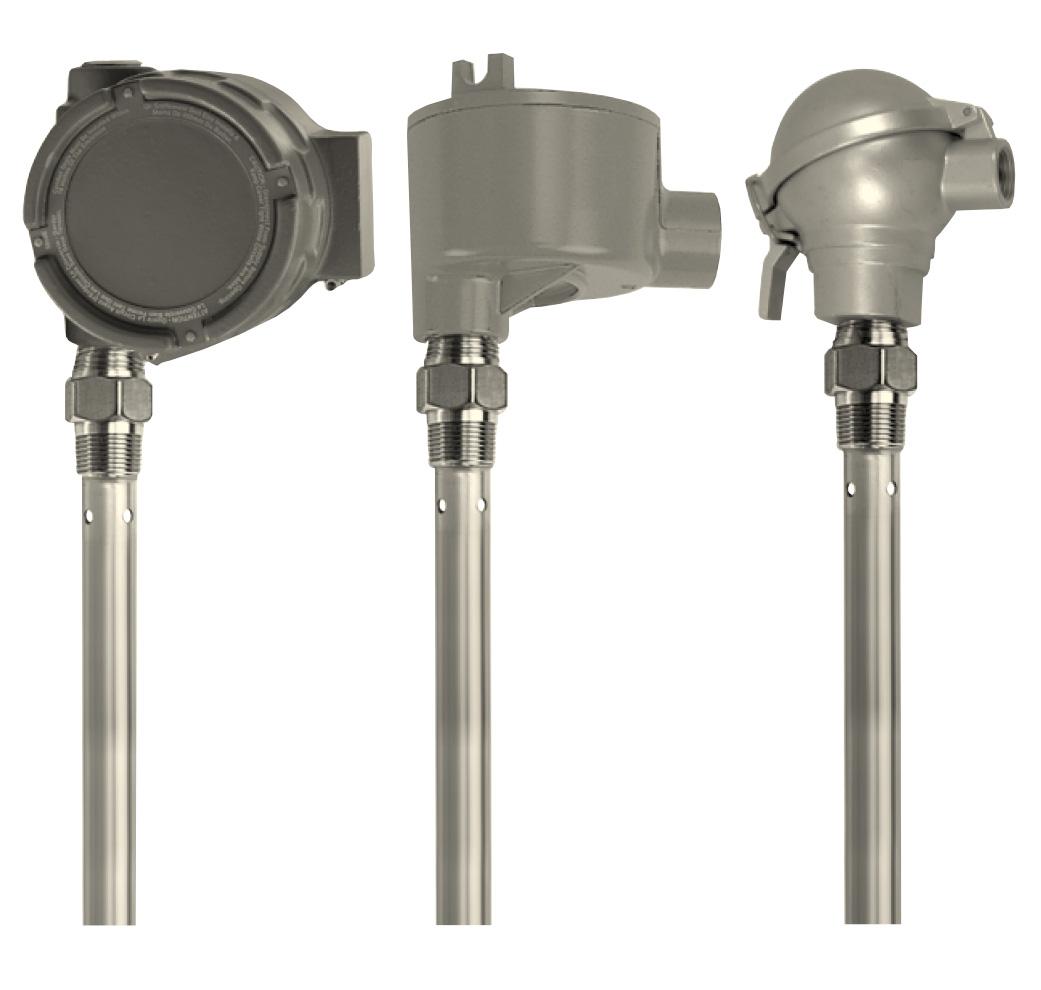

The Intempco LTX20 series fuel capacitance level transmitter is designed to measure level of fuels and oils in metallic and non-metallic tanks. The probe measures level by measuring the change in capacitance as level changes in the tank. The microprocessor based electronics converts this capacitance change into a linear, highly accurate 4-20 mA signal.

The LTX20 includes a standard 4 - 20mA loop powered LTX transmitter, a concentric 0.75 -inch diameter concentric shield with 0.188 - rigid sensor for ranges up to 10 feet. Probe material is SS316. The LTX20 is designed for tanks which have fitting connections of 3/ 4 " NPT or larger and in applications where the liquid is relatively clean or non-clogging.

An excellent application for the LTX20 are stationary or mobile generators. This level sensor is shock resistant and very rugged. There are no moving parts. To isolate for ground loops, a non-conductive reducer ( such as PVC ) can be used between the tank and the 3/4" NPT fitting of the LTX20.

Applications/Process Notes: Diesel fuels, Hydraulic oils, Vegetable oils, Chemical holding tanks, MEK and other solvents, Many other, non-conductive liquids. Do not use with: Water and other conductive liquids, Conductive acids, Materials corrosive to SS316.
