Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- Liquicap FMI21
- Type
- Capacitive Level Transmitter
- Probe Length
- 2.5 m (8 ft)
- Process Temp
- -40 to 100°C (-40 to 212°F)
- Process Pressure
- Vacuum to 10 bar (145 psi)
- Accuracy
- Up to 1%
- Documents
- Product Manual, Product Specs
Product Description

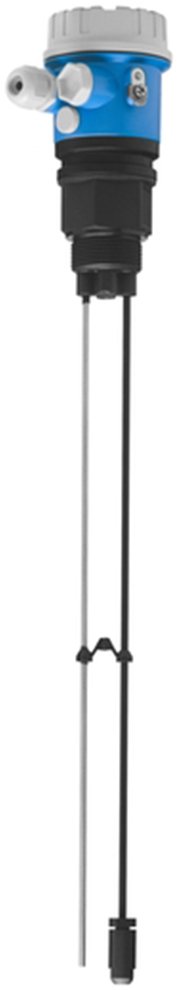

The E+H Liquicap FMI21 Capacitive Level Transmitter is a simple rod probe for continuous level measurement for conductive liquids. High quality non-corrosive materials (carbon fiber, stainless steel) make it suitable even for aggressive liquids (e.g. acids and alkalis).
Capacitive Level Transmitter - Conductive Liquids | E+H Liquicap FMI21
Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- Liquicap FMI21
- Type
- Capacitive Level Transmitter
- Probe Length
- 2.5 m (8 ft)
- Process Temp
- -40 to 100°C (-40 to 212°F)
- Process Pressure
- Vacuum to 10 bar (145 psi)
- Accuracy
- Up to 1%
- Documents
- Product Manual, Product Specs
