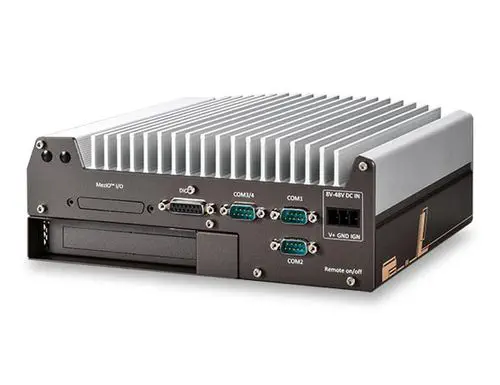

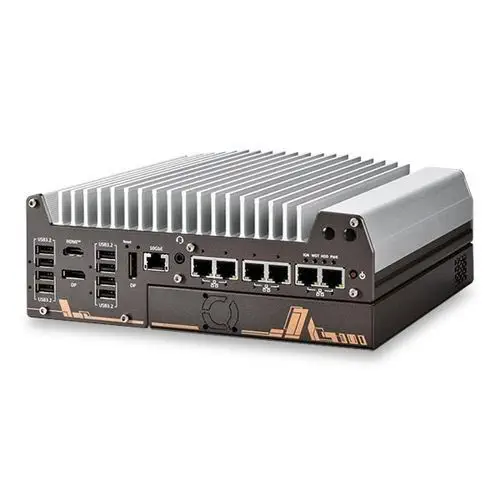

The Neousys Nuvo-11000 series is a flagship rugged embedded computer built on the Intel Core Ultra 200S platform. Powered by TSMC's advanced 3nm photolithography, the latest Core Ultra 200 processors offer up to 24 cores/24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPS. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.

Rugged Design and Environmental Specifications

The Nuvo-11000 series upholds Neousys' renowned Rugged DNA, ensuring exceptional reliability even in the harshest environments. Key environmental features include:

• Fanless Wide-Temperature Operation: -25°C to 70°C
• Wide-Range DC Input: 8V to 48V
• Dimensions (W x D x H): 240 mm x 225 mm x 90 mm
• Weight: Approximately 3.58 kg
• Mounting: Wall-mount (standard), DIN-rail (optional)
• Certifications: CE, FCC, RoHS

Comprehensive I/O and Expansion Capabilities

The Nuvo-11000 series provides extensive I/O for industrial applications:

• Ethernet: 5x 2.5GbE and 1x GbE ports with optional PoE+ (total 100W), plus 1x optional 10GBASE-T port for high-speed data transfer or 10Gb industrial cameras.
• USB: Up to 8x USB 3.2 Gen2 ports (10 Gbps) for USB3 cameras.
• Digital I/O: 4x isolated DI and 4x isolated DO for automation and machine vision applications.
• Video Outputs: 1x HDMI and 2x DisplayPort, supporting three independent 4K displays.
• Expansion: Supports add-on cards via its Expansion Cassette (up to 2x PCIe x16 slots), proprietary MezIO interface, and internal mini-PCIe slots.

High-Performance Computing and AI Acceleration

Built for demanding edge AI workloads, the Nuvo-11000 series leverages the Intel Core Ultra 200S processor's integrated NPU for real-time AI inference. With support for up to 96GB of high-speed DDR5-6400 memory and an M.2 Gen5 x4 slot for NVMe SSDs (achieving read/write speeds over 11,000 MB/s), it can effortlessly handle intensive data processing and AI model execution.

Applications

The Nuvo-11000 series is ideal for a wide range of industrial applications, including machine vision inspection, warehouse automation control, autonomous mobile robots (AMR), logistics infrastructure, real-time automation, and intelligent control tasks. Its combination of rugged reliability, high-performance computing, and flexible I/O makes it a versatile solution for next-generation industrial systems.
