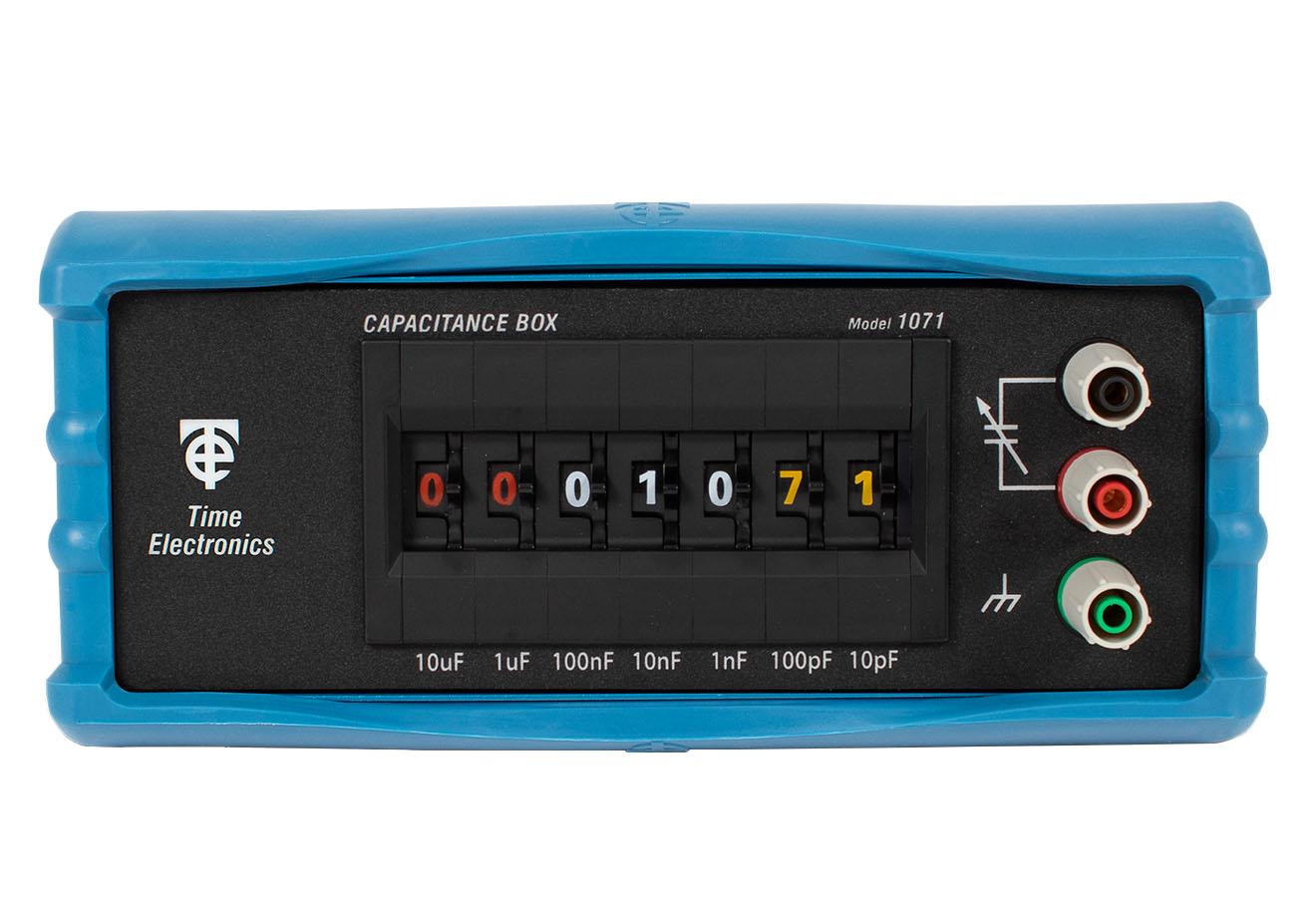

The Time Electronics 1071 capacitance decade box offers high accuracy across several ranges: from 10pF to 100µF. Each of these ranges are measured within a 1% basic accuracy. The 7-digit thumbwheel switch enables simple and precise setting of the capacitance value. The 1071 is suitable for applications in industry and education.

Features include an in-line read-out and color-coded digits: µF = Red, nF = White, pF = Yellow. The 1071 has three 4mm binding posts and a third terminal to enable the case to be connected to either output or earth. The case itself is constructed of metal to provide complete screening and has a residual capacitance of approximately 55pF. Bi-polar working is supported.

The 1071 is compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.

Key Features

• Range: 10pF to 100µF
• Accuracy: 1%
• Resolution: 10pF steps (9 steps per decade)
• Residual capacitance: approximately 55pF
• 7-digit thumbwheel switch with in-line readout
• Color-coded digits: µF = Red, nF = White, pF = Yellow
• Fully screened metal case
• Three 4mm binding posts with case terminal
• Bi-polar working capability

Applications

• Precision capacitance simulation
• Laboratory calibration
• Filter design and testing
• Sensor simulation and verification
