The ICON Truflo UF500 Series Ultrasonic Flow Meter Sensor is designed for fast setup and remove flow restrictions with no pipe modification necessary, ensuring hassle-free installation. The flow meters are designed with a wide dynamic flow range, spanning from 0.1 to 5 m/s (0.3 to 15 ft/s) making them suitable for a diverse range of applications, including low-pressure systems. The flow meter's ultrasonic transducer sends 50+ pulses/sec, ensuring accurate measurement of liquid flow rates in full pipes. Making the UF500 high adaptable to diverse scenarios.

The rugged construction of these flow meter sensors is another testament to their quality and reliability. Available in Teflon Epoxy Coated Aluminum body, they strike a perfect balance between being lightweight and possessing excellent external corrosion resistance. This ensures longevity and durability, contributing to an extended lifecycle with virtually no maintenance requirements. Save time and install these ultrasonic flow meter sensors seamlessly in under two minutes without altering existing piping configurations.

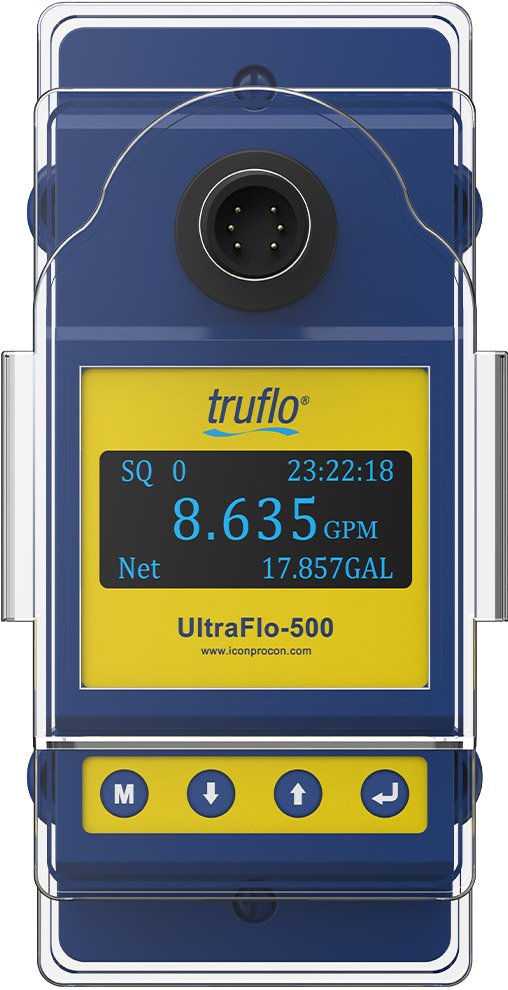

Ideal for low-pressure systems or industrial use, the flow meter provides exceptional value, ensuring accurate and hassle-free liquid flow measurement. Key specifications include ±2.0% of FS accuracy, pipe sizes from 1/2 to 6 inches, and compatibility with PVC, PP, PVDF, PE, stainless steel, and copper pipe. The large blue OLED display ensures readability in low light conditions. Standard outputs include 4-20mA and RS 485, with pulse output available as an option. Flow rate and total are resettable for flexible monitoring.

Applications include liquid chemical flow measurement, filtration systems, water and wastewater monitoring, industrial chemical distribution, process chemical skids, liquid consumption, and discharge verification.
