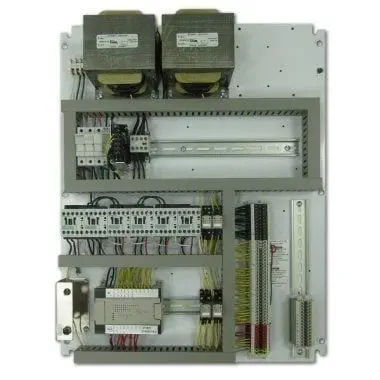

The Peelle Cabinet Programmable Controller is a purpose-built PLC engineered specifically for the unique demands of freight elevator door systems. While Peelle is renowned globally for its robust vertical sliding freight doors, the intelligence that governs their safe, efficient, and reliable movement is equally critical. This controller is designed from the ground up to be the nerve center of Peelle door operations, providing a modern, solid-state alternative to legacy electromechanical relay logic systems. It represents a cornerstone of Peelle's modernization strategy, allowing older installations to be upgraded with contemporary control technology without requiring a complete overhaul of the door mechanics.

One of the controller's most compelling value propositions is its ability to serve as a direct, drop-in replacement for older Peelle relay logic controllers. This is a crucial feature for building owners and elevator contractors undertaking modernization projects. Instead of rewiring entire control panels or replacing door operators, the Peelle PLC can be installed in its place, leveraging the existing infrastructure while delivering the enhanced performance, diagnostics, and reliability of a modern programmable controller. It is compatible with single, staggered, or double line doors and includes an integrated power transformer within a single cabinet. The controller can also operate in "SLA Mode," a configuration that allows a third-party elevator controller to directly command specific door operations, providing seamless integration within the broader elevator control ecosystem.

At the heart of the controller is a sophisticated Variable Voltage Variable Frequency (VVVF) drive system. Unlike traditional contactor-based controls, the VVVF inverter provides smooth, precise, and quiet acceleration and deceleration of the door panels. This technology is self-learning and self-adjusting, continuously optimizing the door's motion profile to compensate for mechanical wear, variations in building stack pressure, or minor debris in the guides. The result is not only a quieter and more refined operation but also significantly reduced mechanical stress on the door components, leading to extended service life. The system incorporates closed-loop feedback and true door positioning, which eliminates the need for many external limit switches and sensors, further simplifying installation and maintenance.

Installation and diagnostics are streamlined by design. Peelle claims its wireless controller variant can reduce wiring time by up to 50% and labor costs by 40-50% compared to traditional hardwired systems. An onboard LCD display provides maintenance personnel with immediate access to system status, fault codes, and operational parameters directly at the controller, eliminating guesswork during troubleshooting. The controller is designed to be housed in enclosures rated NEMA 4 (watertight), NEMA 4X (watertight and corrosion-resistant), or NEMA 7 (explosion-proof), making it suitable for deployment in a wide range of industrial and commercial environments. For applications where hardwiring between the elevator controller and the door controller is impractical, Peelle offers a wireless "bridge" that creates a robust RF link between the two systems, ensuring seamless communication without the need for additional conduit or wiring.
