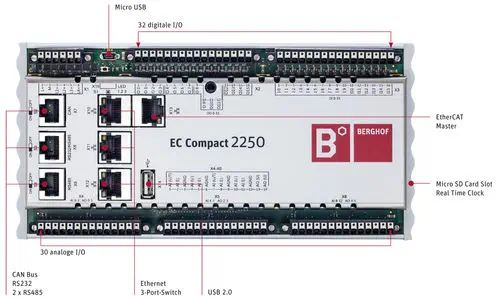

The Berghof EC2250 is a compact, PC card-based programmable logic controller engineered for applications demanding minimal cycle times and hard real-time performance. Its high-speed processing is driven by a powerful 800 MHz Arm Cortex-A9 CPU, making it a perfect fit for complex automation tasks in compact machines and building systems. The controller uniquely combines a robust hardware foundation with the versatile and widely adopted CODESYS V3.5 software environment.

At the hardware level, the EC2250 offers a rich set of permanently integrated digital and analog I/Os, comprising 32 digital channels and 30 analog channels. This comprehensive onboard I/O simplifies wiring and reduces the need for external expansion modules in many applications. For additional flexibility, the controller includes a slot for extension cards, allowing for customized hardware configurations. Communication is a cornerstone of the EC2250, featuring an extensive suite of integrated interfaces, including Ethernet, EtherCAT, CAN Bus, RS232, and RS485. It also supports a wide range of higher-level industrial protocols such as PROFINET, BACnet, Modbus TCP/RTU, and CANopen, ensuring seamless integration into virtually any automation network.

The software capabilities of the EC2250 are equally impressive. Built on the CODESYS V3.5 platform, it leverages the full potential of this industry-standard IEC 61131-3 programming environment. With the integrated CODESYS SoftMotion package, the controller can manage technologically sophisticated multi-axis drive applications without requiring separate motion controllers. For visualization, it utilizes CODESYS Target and Web-Visu, enabling the creation of intuitive operator interfaces accessible via standard Ethernet terminals. Furthermore, with a Micro SD slot and a new SQL database library, the EC2250 excels at data management tasks, allowing for rapid access to system data for host system integration and advanced analytics.

Applications

The Berghof EC2250 is ideally suited for a range of demanding automation tasks, including:

• Compact machine control and robotics
• Building automation and HVAC systems
• Multi-axis motion control applications
• Data-intensive edge computing and IoT gateways
