Product Specifications
- Manufacturer
- ICON Process Controls
- Product Number
- C450 Series
- Type
- Double Electrode Conductivity Sensor Transmitter
- Measurement Range
- 0 to 200,000 µS/cm
- Accuracy
- ±0.5%
- Temperature Compensation
- PT1000
- Outputs
- 4-20mA and RS485
- Process Connection
- 3/4" NPT
- Ingress Protection
- IP68
- Pressure Rating
- 150 psi
- Temperature Range
- 14 to 176°F
- Power Supply
- 9-36VDC
- Connection
- M12 quick disconnect
- Documents
- Product Manual , Product Specs
Product Description
The ICON ProCon C450 Series is a double electrode conductivity sensor transmitter designed for industrial applications in extreme conditions. Available with cell constants of 0.01, 0.1, 1.0, and 10.0 cm⁻¹ covering ranges from 0-100 µS/cm to 0-200,000 µS/cm. Titanium alloy electrodes and polypropylene body ensure durability in corrosive environments.
The sensor comes factory calibrated and features PT1000 temperature compensation. Output options include 2-wire 4-20mA, 4-wire, or 4-20mA with RS485, simplifying integration with control systems. The M12 quick connection eliminates the need for a separate conductivity module. IP68 rated, pressure 150 psi, temperature range 14-176°F, power 9-36VDC. No pre-amplifier required.
Applications include process control, water quality monitoring, sanitization systems, neutralization systems, effluent monitoring, pool and spa control, aquatic animal systems, and cooling towers.

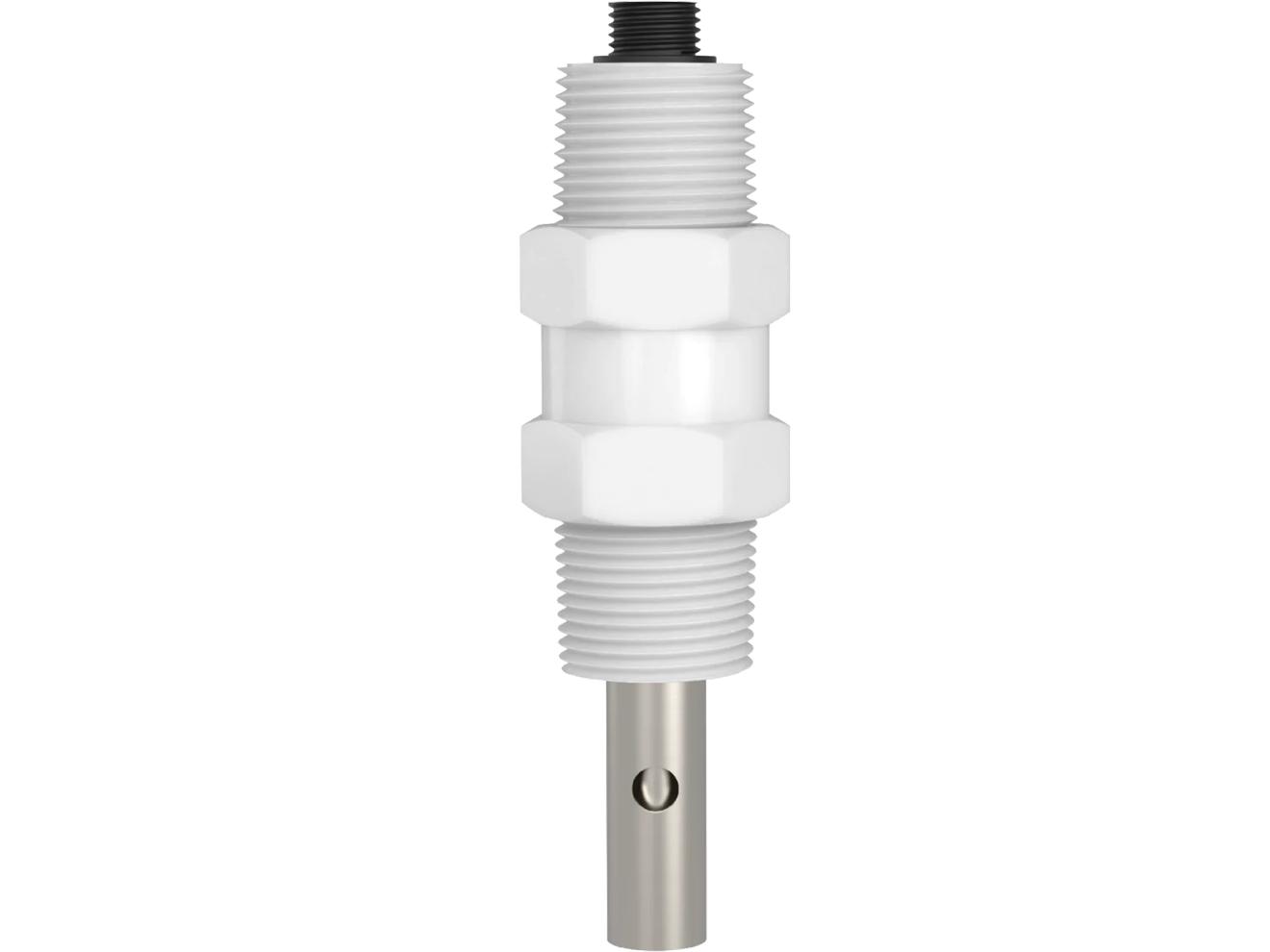

Industrial Conductivity Sensor - 0-200,000 µS/cm, RS485 | ICON ProCon C450
Product Specifications
- Manufacturer
- ICON Process Controls
- Product Number
- C450 Series
- Type
- Double Electrode Conductivity Sensor Transmitter
- Measurement Range
- 0 to 200,000 µS/cm
- Accuracy
- ±0.5%
- Temperature Compensation
- PT1000
- Outputs
- 4-20mA and RS485
- Process Connection
- 3/4" NPT
- Ingress Protection
- IP68
- Pressure Rating
- 150 psi
- Temperature Range
- 14 to 176°F
- Power Supply
- 9-36VDC
- Connection
- M12 quick disconnect
- Documents
- Product Manual , Product Specs
