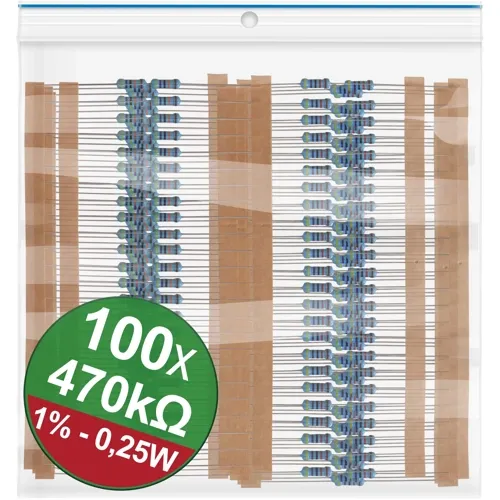

The QUADRIOS 22P056 provides 100 pieces of precision 470kΩ metal film resistors. The 470kΩ value is commonly used in high-impedance analog circuits, including non-inverting op-amp feedback networks with very low gain, voltage dividers for high-voltage monitoring, and input bias resistors for JFET and CMOS op-amps where minimizing current draw is critical.

Key Specifications

The 1% tolerance is critical for maintaining accurate voltage division and feedback ratios in high-impedance circuits where resistance values are large. The ±100 ppm/K temperature coefficient ensures minimal drift, even in applications with significant temperature variations. The axial leaded package (2.3 mm diameter, 6 mm length) is suitable for through-hole assembly, prototyping, and breadboarding.

Typical applications include feedback resistors for low-gain op-amp circuits, voltage dividers for high-voltage monitoring, pull-down resistors for CMOS logic inputs, and biasing networks for high-impedance sensors. EAN: 4260732281818. Bürklin order number: 73P0044. The bag contains 100 pieces.
