Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- iTEMP TMT84
- Product Type
- Temperature Head Transmitter
- Inputs
- 2 x RTD, TC, Ohm, mV
- Communication
- PROFIBUS PA Profile 3.02
- Features
- High accuracy through sensor-transmitter matching, NAMUR NE 107 diagnostics
- Mounting
- Flat-face terminal head as per DIN EN 50446
- Documents
- Product Manual, Product Specs
Product Description

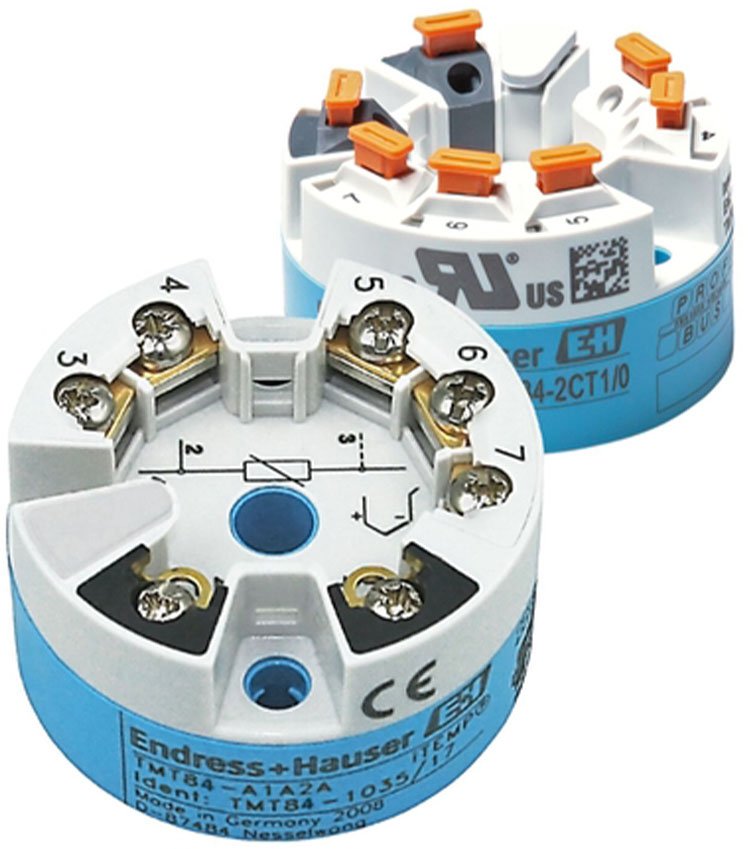

The E+H iTEMP TMT84 Temperature Head Transmitter provides unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using PROFIBUS PA communication. High measurement point availability by means of sensor monitoring functions. Diagnostics information according to NAMUR NE 107. Optimization of the measurement accuracy by sensor-transmitter matching.
Endress+Hauser
Compare
PROFIBUS PA Temperature Transmitter - Dual Channel | E+H iTEMP TMT84
PROFIBUS PA dual
MPN/Series: iTEMP TMT84
Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- iTEMP TMT84
- Product Type
- Temperature Head Transmitter
- Inputs
- 2 x RTD, TC, Ohm, mV
- Communication
- PROFIBUS PA Profile 3.02
- Features
- High accuracy through sensor-transmitter matching, NAMUR NE 107 diagnostics
- Mounting
- Flat-face terminal head as per DIN EN 50446
- Documents
- Product Manual, Product Specs
