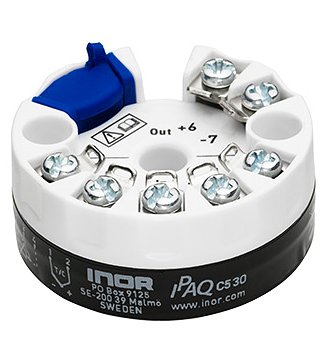

The INOR IPAQ C530 is a digital, 2-wire, universal transmitter for temperature, resistance or voltage measurements of solids, fluids and gases in an industrial environment. Compatible with RTD, thermocouples, voltage and potentiometer sensors, the C530 offers high flexibility and reduces the number of installed product variants. It also features matching to a calibrated temperature sensor, performed by entering the sensor deviation in the low and high ends of the measuring ranges.

The robust design of the IPAQ C530 makes it highly reliable even under the most demanding conditions. External influences such as ambient temperature, vibrations up to 10g, moisture and EMC interference have minimal influence on the measuring result.

The C530 is intended for installation in a DIN-B housing or larger. It is fully compatible with the HART 7 protocol, which offers extended diagnostic information, including device error, and sensor and wiring conditions. It can measure the ambient temperature and supply voltage it has been exposed to, allowing the user to detect peaks that could damage the process control. The transmitter also supports communication via NFC (Near-field communication), making it possible to configure and monitor the transmitter remotely. NFC features wireless communication and configuration between the transmitter and a portable device such a smartphone. To utilize Bluetooth connectivity, the IPAQ C530 must be paired with the ICON-BT accessory (sold separately). The C530 is PC-programmable. Measuring ranges can be set from the PC, and full accuracy is provided without any need for calibration.
