Product Specifications
- Manufacturer
- INOR
- Model Number
- MinIPAQ C230
- Product Type
- Temperature Transmitter
- Inputs
- Resistance (RTD), Thermocouples (TC), mV and linear resistance
- Accuracy
- High accuracy for RTD and thermocouple sensors
- Drift
- Maximum ±0.05% of span per year
- Configuration
- NFC wireless via smartphone app, Bluetooth with ICON-BT (optional)
- Documents
- Product Manual, Product Specs
Product Description

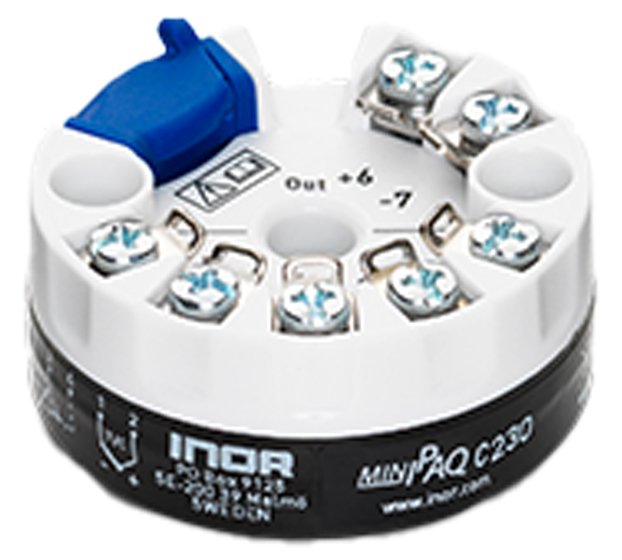

The INOR C230 MinIPAQ Universal 2-Wire Transmitter is a universal, non-isolated, 2-wire head mounted transmitter for temperature measurements. It performs and maintains accuracy under harsh conditions. The transmitter is compatible with resistance thermometers (RTDs), thermocouple sensors (TCs) and linear resistance and mV signals. It is configurable with the INOR Connect app, either wirelessly via smartphone NFC (near field communication) or via Bluetooth using the Inor ICON-BT accessory. It is also configurable on a windows PC with the ICON-Lite configuration kit.
Resources & Documentation
INOR C230 MinIPAQ Universal 2-Wire Transmitter Datasheet(670 KB)
PDF Document
INOR C230 MinIPAQ Universal 2-Wire Transmitter Declaration of Conformity(900 KB)
PDF Document
INOR C230 MinIPAQ Universal 2-Wire Transmitter Manual(985 KB)
PDF Document
INOR C230 MinIPAQ Universal 2-Wire Transmitter Replacement Manual(627 KB)
PDF Document
