Product Specifications

Product Description

The INOR IPAQ C330 universal transmitter is an isolated temperature transmitter with additional voltage and resistance input. Offering an accuracy of ±0.08°C or ±0.08% of span, the C330 also features a maximum drift of ±0.1°C or ±0.1% of span over five years. This INOR transmitter's accuracy and long-term stability are a result of its high-efficient 50-point linearization or Callendar-Van Dusen equation and an electronic design based on "zero-drift" technology.

When paired with the ICON Lite configuration kit, the INOR IPAQ C330 universal transmitter can be configured without a power supply. INOR's ConSoft is used to configure the C330 in seconds with Windows-based parameters such as measuring range, sensor failure action, error corrections, TAG and more. Additionally, with the C330's runtime counter, users can now easily supervise the elapsed operational time. ATEX and IECEx approvals are optionally available for this INOR transmitter as well.

The transmitter supports communication via NFC (Near-field communication), making it possible to configure and monitor the transmitter wirelessly using an NFC communications enabled smartphone or tablet (iOS and Android). To utilize Bluetooth connectivity, the IPAQ C330 must be paired with the ICON-BT accessory (sold separately).

INOR
Compare

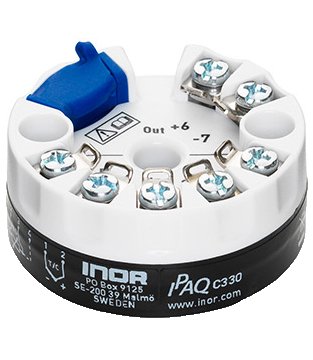

Head Mount Temperature Transmitter - ±0.08°C NFC | INOR IPAQ C330

±0.08°C 5yr drift
MPN/Series: IPAQ C330

Product Specifications

Manufacturer
INOR
Model Number
IPAQ C330
Product Type
Temperature Transmitter
Accuracy
±0.08°C or ±0.08% of span
Drift
±0.1°C or ±0.1% of span maximum over 5 years
Inputs
RTD, TC, mV, ohm
Output
4 to 20mA analog
Configuration
NFC wireless, Bluetooth with ICON-BT (sold separately)
Documents
Product Manual, Product Specs
