Product Specifications
- Manufacturer
- JFlow Controls
- Model Number
- DM7300 Series
- Product Type
- Sanitary Three-Piece Ball Valve
- Size Range
- 1/2 to 4 inch
- Temperature Range
- -20 to 600 F
- Pressure Rating
- 600 / 800 / 1000 psi WOG
- Certifications
- 3A available, FDA Viton O-ring
- Features
- ISO 5211 mounting pad, blow-out proof stem, investment cast body, locking handle, ASME BPE-2005 ends
Product Description

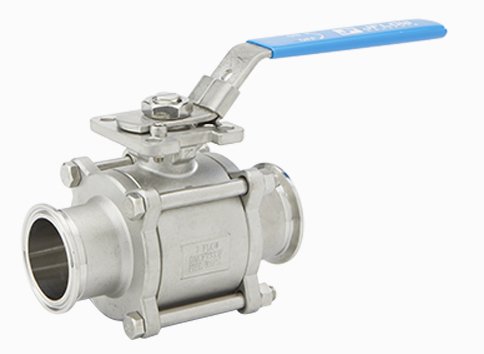

The DM7300 Series is a three-piece sanitary ball valve from JFlow Controls, built in full port from 1/2 inch to 4 inch with a body and end caps in investment casting, a cavity that drains, and a stem that can be serviced without removing the valve from the line. The valve mounts directly through an ISO 5211 pad, and an actuator or handle bolts on without a bracket. Pressure ratings are 600, 800 or 1000 psi WOG depending on size and configuration, and the temperature range runs from -20 to 600 degrees Fahrenheit.
Sanitary construction is the point of the series: the flow path is straight, the cavity is minimized, and the ends are machined as T-clamp, tube weld or extended tube weld to ASME BPE-2005. Seats are PTFE or TFM with a Viton O-ring that meets FDA requirements. The 3A sanitary standard is available on request; a dairy or pharmaceutical line can specify it, and general food and beverage duty often runs the standard build.
Mechanically the valve is serviceable in line. The stem is blow-out proof. The packing is adjustable, and the handle locks in position. The 4 inch size closes on six bolts and nuts, and a DIN 3337 stem connection accepts a standard actuator drive.
Every unit is air tested under water at 80 to 100 psi before shipment. Design and testing follow ASME B16.34, API 598, API 608, MSS SP-55 and MSS SP-25, with material certification to EN10204-3.1 and sulfide stress cracking resistance to NACE MR-01-75 under ISO 9001:2008 quality control.
The series covers sanitary duty only. It is not a steam valve, not a diaphragm valve and not a control valve with characterized trim. A line that needs throttling or sterile construction takes another product family.
