Product Specifications
- Manufacturer
- JFlow Controls
- Model Number
- 1100 Series
- Product Type
- One-Piece Ball Valve
- Pressure Rating
- 2000 psi WOG; 150 psi saturated steam
- Temperature Range
- -40 to 500°F
- Body Materials
- Stainless steel, carbon steel
- Features
- Fire safe design, blow-out proof stem, screw-in retainer design, MR0175 compliant, MTRs available
- Documents
- Product Specs
Product Description
The JFlow Controls 1100 series manual valves are one piece ball valves that are rated for use up to 2000 psi. With a fire-safe design and a blow-out proof stem design, the valves are recommended for hydraulic, chemical, steam, oil-gas, and oxygen applications. The valves are available in stainless steel and carbon steel, and contain a screw-in retainer design that provides extra body strength and lowers leaking possibility. MTR reports are available with these valves.
Resources & Documentation
JFlow Controls
Compare

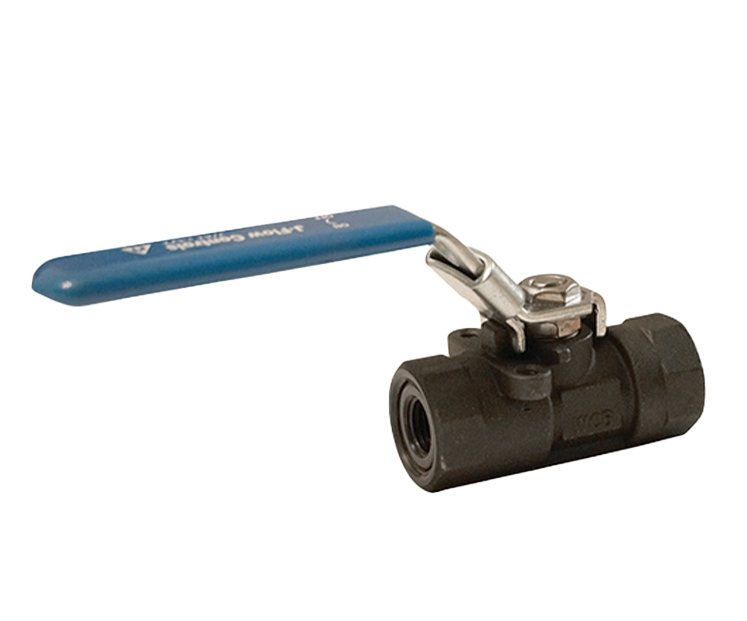

JFlow Controls 1100 Series One-Piece Ball Valve - Fire Safe, 2000 psi, -40 to 500°F
One-piece, fire safe, MR0175
MPN/Series: 1100 Series
Product Specifications
- Manufacturer
- JFlow Controls
- Model Number
- 1100 Series
- Product Type
- One-Piece Ball Valve
- Pressure Rating
- 2000 psi WOG; 150 psi saturated steam
- Temperature Range
- -40 to 500°F
- Body Materials
- Stainless steel, carbon steel
- Features
- Fire safe design, blow-out proof stem, screw-in retainer design, MR0175 compliant, MTRs available
- Documents
- Product Specs
