Product Specifications
- Manufacturer
- Carlo Gavazzi
- Product Number
- SPUC
- Product Type
- UPS Controller
- Mounting Style
- DIN Rail Mounted
- Applicable Power Supply
- 30A Power Supply
- Main Function
- Conventional supply to UPS retrofit, Standalone UPS system realization
- Application
- Industrial Uninterruptible Power Supply Systems
- Availability
- Usually ships in 65 weeks
- Documents
- Product Specs
- Warranty
- One Year
Product Description

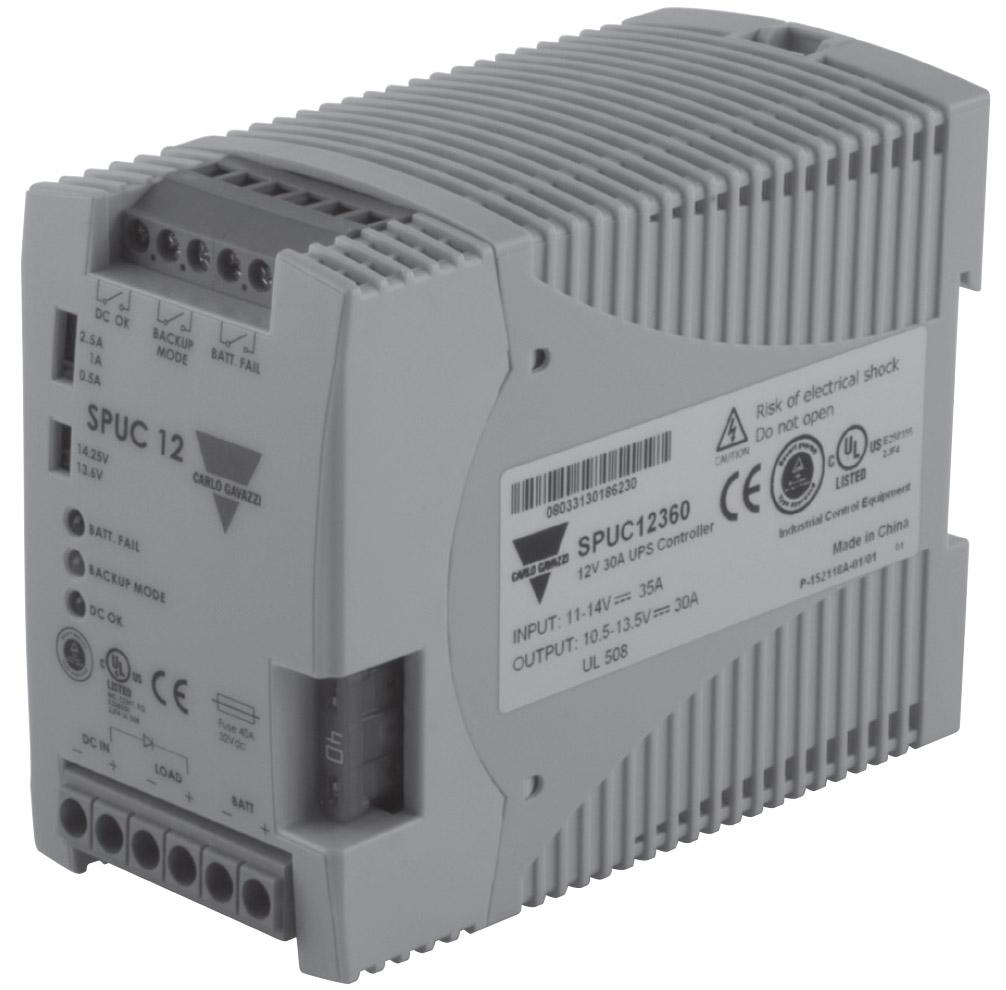

The Carlo Gavazzi SPUC UPS controller can be used to either convert and existing conventional supply system into an uninterruptible power supply system or to realize a UPS system by using a separate power supply. The SPUC is suitable for both 12V and 24V systems and can handle up to 30A maximum output current.
Features
- Up to 720 watts max power output
- 30A max output current
- For both 12V and 24V systems
- Built-in battery test function
- Battery polarity protection
-
Relay contact signal output LED indicator
- DC Bus OK
- Battery fail
- Battery discharge
- Suggested batteries from 4 to 12Ah
- 3 year warranty
