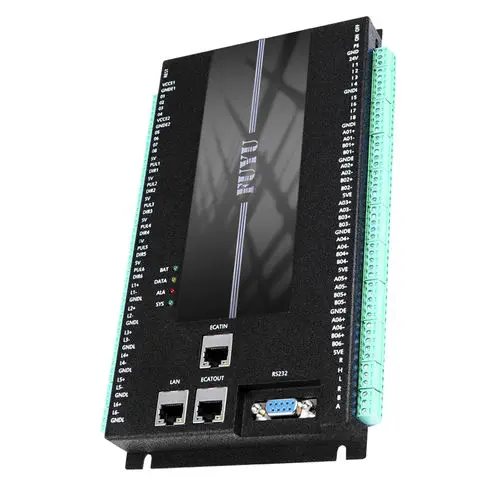

The FUYU FMCG6A is a high-performance 6-axis intelligent motion controller designed for industrial automation, CNC machinery, and robotics applications. It provides precise position and speed control for stepper or servo motors, enabling complex motion sequences with ease.

Technical Specifications

• Power Supply: 24V DC
• Power Consumption: 4W
• CPU: 2 MHz
• Operating System: FreeRTOS
• Control Axes: 6 axes
• Pulse Output: PWM pulse output with index acceleration control
• I/O Channels: 8 universal I/O channels, expandable
• Dimensions: 240 × 145 × 24 mm

Communication and Protocols

The controller supports multiple hardware communication interfaces: RS232, RS485, CAN, EtherCAT, and RJ45 network port. It complies with industrial bus protocols including Modbus, CANopen, and EtherCAT, supporting up to 65,535 device connections in a network.

Programming and Customization

The FMCG6A supports Windows and Linux operating systems. Developers can program using C/C++, C#, or Python. The manufacturer also provides customized programming services to meet specific project requirements.

Motion Control Features

The controller supports single-axis motion, linear interpolation, circular interpolation, and return-to-zero positioning. It is ideal for applications requiring precise multi-axis coordination.

Applications

• Industrial automation systems
• CNC machinery
• Robotic arms
• Precision positioning equipment
• Linear motion control systems
