Product Specifications
- Manufacturer
- VEGA
- Model Number
- VEGAPOINT 11
- Type
- Compact Capacitive Limit Switch
- Process Pressure (Standard)
- -1 to 25 bar (-14.5 to 363 psig)
- Process Temp
- -4 to 212°F (-20 to 100°C)
- Output
- PNP transistor
- Documents
- Product Specs
Product Description
The VEGA VEGAPOINT 11 Ultra-CompactCapacitive Limit Switch can be used in thin pipelines, and is designed for level detection of water-based liquids.
An alternating electric field is generated at the tip of the measuring electrode. If the sensor is covered with medium, the capacitance of the sensor changes. This change is detected by the electronics and converted into a switching command.
Any buildup is ignored to a certain degree and therefore has no influence on the measurement.
The wetted parts of the instrument are made of PEEK and stainless steel 316L. The process seal is made of FKM. The housing is made of stainless steel 316L or Valox and is available in protection classes IP66/IP67 and up to IP69.

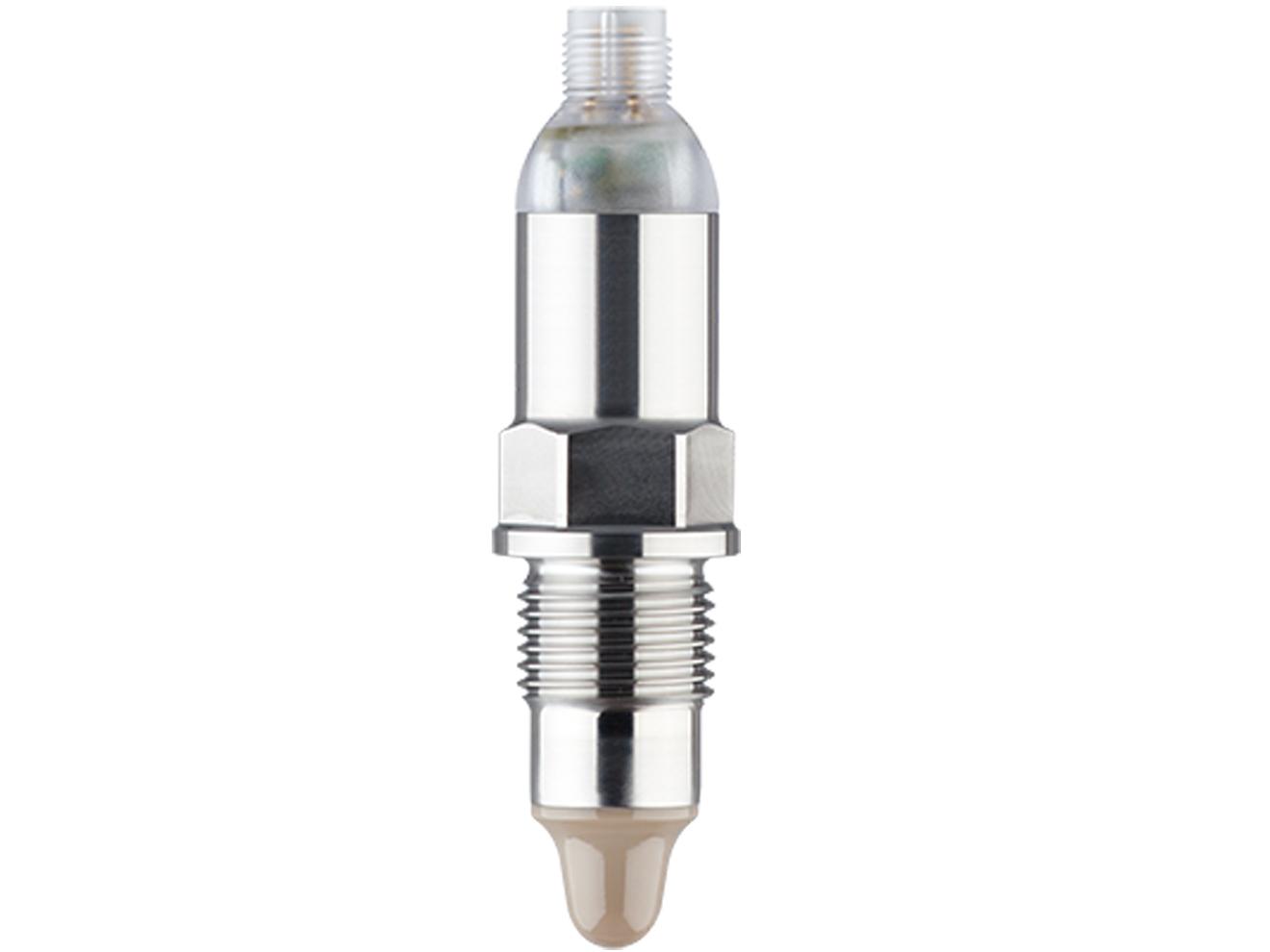

Compact Capacitive Limit Switch - Water Based | VEGA VEGAPOINT 11
Product Specifications
- Manufacturer
- VEGA
- Model Number
- VEGAPOINT 11
- Type
- Compact Capacitive Limit Switch
- Process Pressure (Standard)
- -1 to 25 bar (-14.5 to 363 psig)
- Process Temp
- -4 to 212°F (-20 to 100°C)
- Output
- PNP transistor
- Documents
- Product Specs
