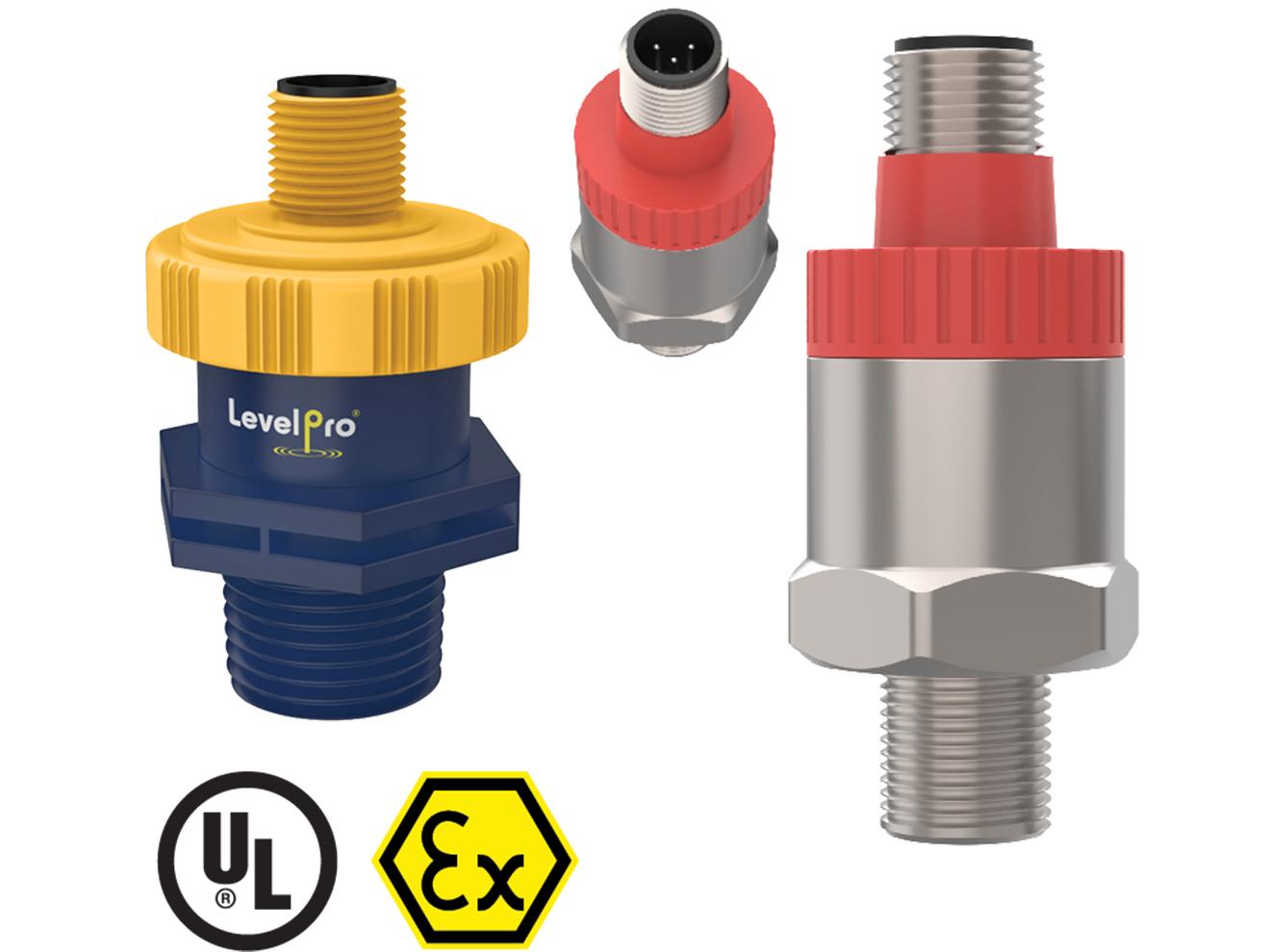

The ICON LevelPro LP50 Pressure Transmitter is designed to measure pressure or level within industry's most demanding corrosive process applications. When measuring pressure it can be mounted vertically or horizontally, and can easily be installed into a threaded process pipe tee fitting.

The LP50 implements a state of the art ceramic measuring principle that changes the physical pressure which equates to no more than a few microns into a linear electronic signal that can be measured. This minimal deformation equates to negligible material strain of the ceramic electronic pressure-sensing diaphragm resulting in high resistance to alternating loads and long-term durability. Exactly what is required for tough industrial applications.

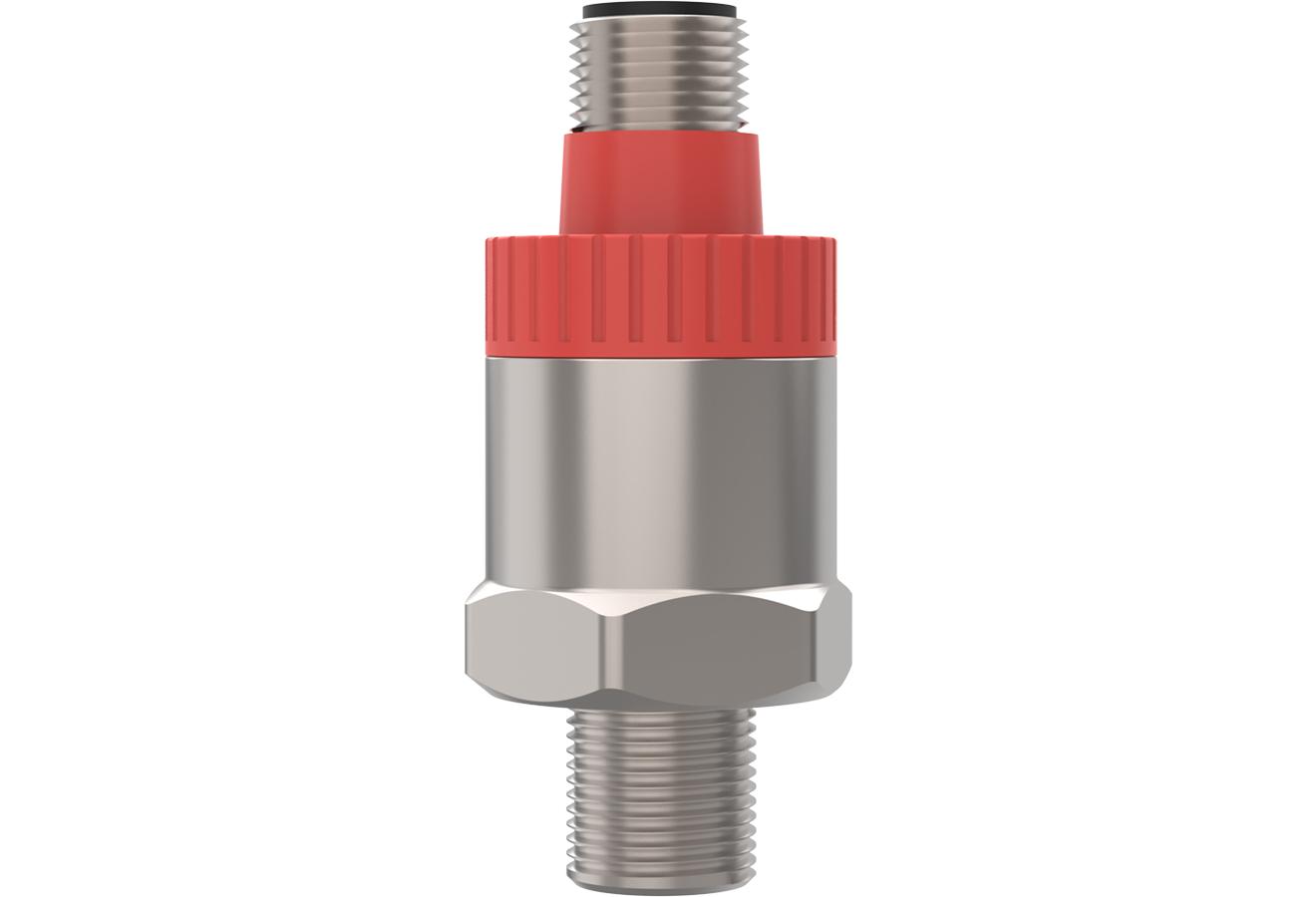

Applications for the LP50 include chemicals (acids and bases), tank level, industrial process piping, vapor pressure, and leak detection equipment. The transmitter features PP, PVDF, or 316SS body options, pressure ranges from 0-30 to 0-150 psi, IO-Link connectivity, 4-20mA two-wire loop powered output, 0.5% FS accuracy, and ceramic or stainless steel sensing diaphragm with excellent chemical resistance. No programming required.
