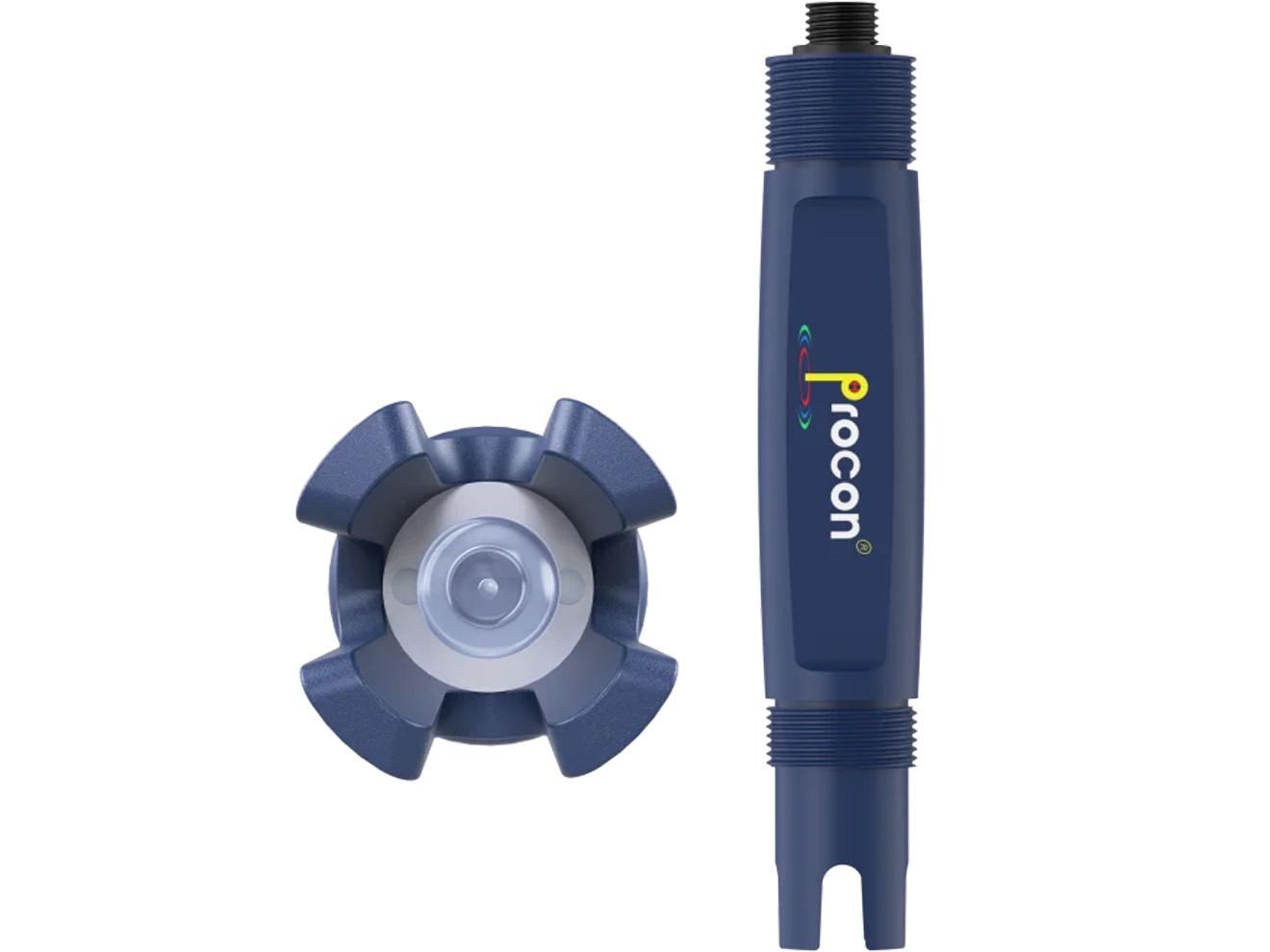

The ProCon P14G Series General Purpose pH Sensor offers long-term reliability with fast response times and high accuracy in a wide range of general process applications.

The pH sensor has been specifically engineered with a double ceramic reference diaphragms that provide highly responsive pH indication. The double salt bridge junction coupled with the PTFE reference technology is the foundation for all P14G series electrodes. The inner reference chamber is charged with potassium chloride (KCl) gel.

All measurement functions are combined in one compact body — measuring electrode, temperature sensor and an inner reference chamber. The 2-wire 4-20mA, 4-wire or 4-20mA + RS485 output options simplify calibration and communication with remote displays and controllers. No pre-amp required.

Applications: Process control, water quality, sanitization systems, neutralization systems, effluent monitoring, pool and spa control, aquatic animal systems, cooling towers.
