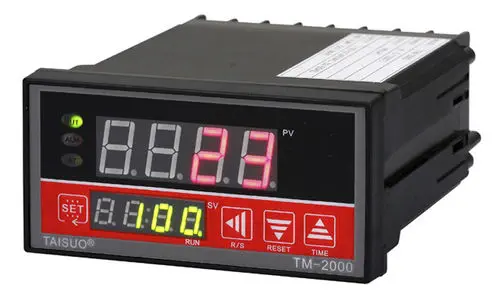

The TM-2000 from ZheJiang Taisuo Technology is a DIN 48×96 mm PID temperature controller with independent PV and SV LED displays, auto-tuning PID, and field-selectable main output. It operates on 100–240 VAC and includes a built-in multi-mode timer — combining temperature control and timed process sequencing in a single 48×96 mm panel slot.

What control outputs are available?

The main control output is selectable from three types:

• Relay — electromechanical contact output for contactors, solenoid valves, and direct heater switching
• SSR drive — pulsed DC output (typically 12 VDC / 30 mA) for driving external solid-state relays, enabling fast-cycle switching without contact wear
• SCR — phase-angle or burst-fire output for resistive heating loads requiring smooth power modulation

An optional heating/cooling dual-mode is available — a secondary output drives a cooling fan or chilled-water valve while the primary output controls heating.

How does the timer function work?

The built-in timer supports two activation modes: start timing immediately on power-up, or start timing only when the process value (PV) reaches the setpoint (SV). This turns the TM-2000 into a combined temperature controller and process timer, eliminating the need for a separate timing relay in soak-time applications.

What are the environmental and installation specifications?

Supply voltage: 100–240 VAC, 50/60 Hz, 4 VA consumption. Operating ambient: 0 to 50 °C, 30–85% RH non-condensing. Dimensions: 48 (W) × 96 (H) × 110 (D) mm. Panel cutout: 45 × 92 mm. CE certified.
