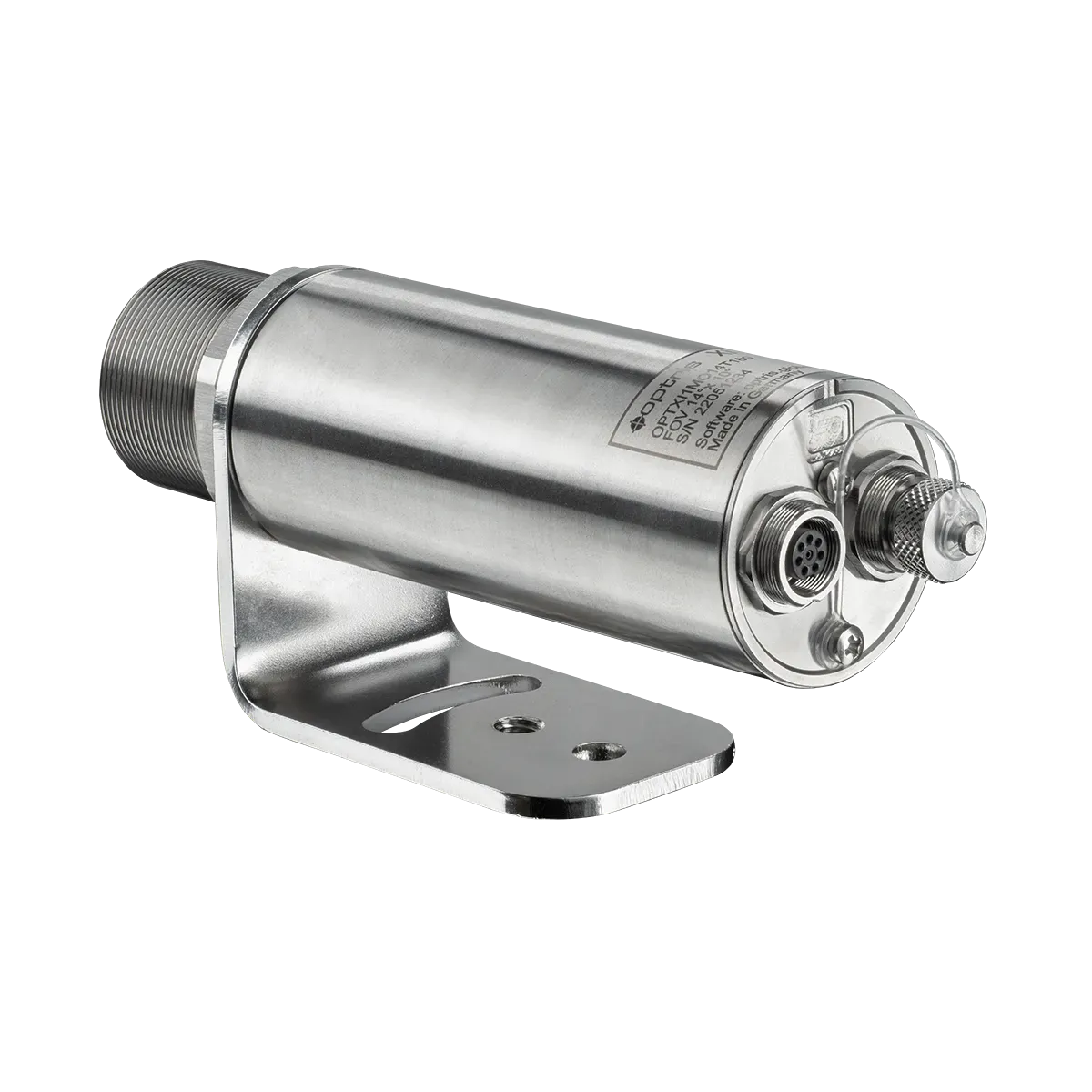

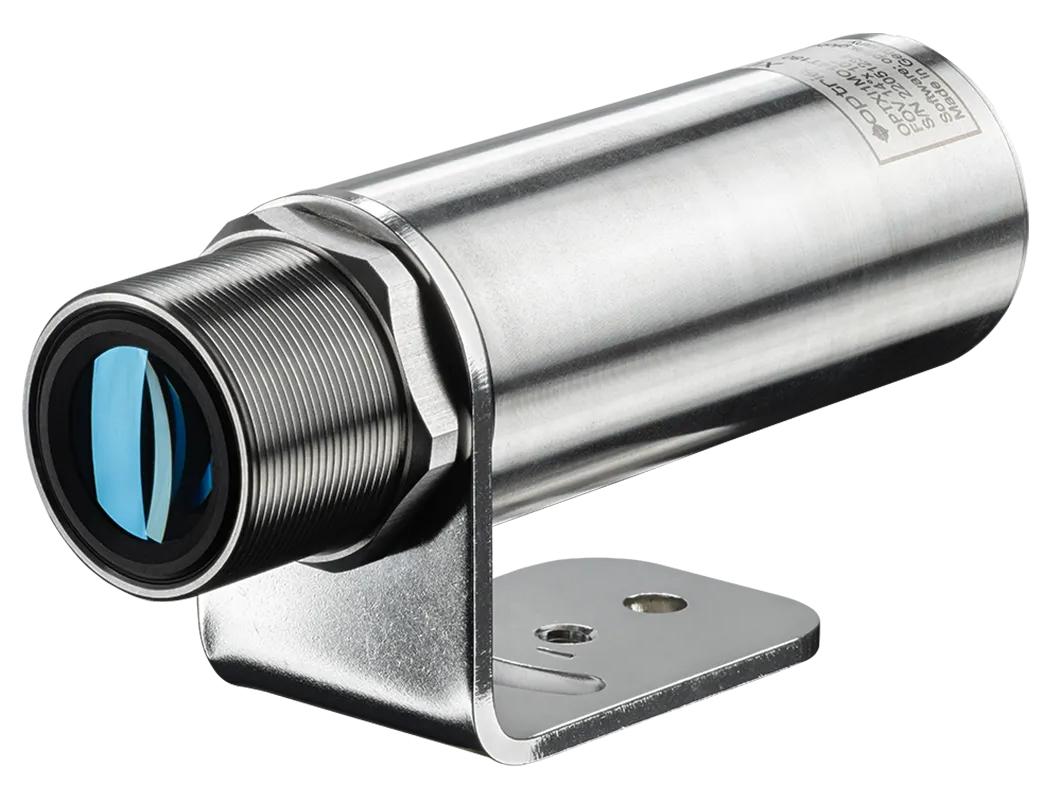

The Optris Xi 05M MeltScope Infrared Camera, a short-wavelength infrared camera, excels in non-contact thermal imaging of challenging objects. It accurately measures the surface temperatures of hot very metals, steel or ceramics.Featuring Ethernet, USB interfaces, and analog and digital process interfaces, it enables seamless integration into control systems and machinery. The short-wavelength spectral range of the Optris Xi 05M MeltScope thermal camera matches the peak emissivity of most metals, enabling accurate non-contact temperature measurement.

The Xi 05M offers autonomous hot-spot detection, ensuring effective monitoring and inspection. The mid-resolution detector (396 × 300 pixels) measures temperatures from 950°C to 2450°C without sub-ranges. Its high distance-to-spot ratio allows precise measurements from afar, while the motorized focus enables remote adjustment.

Built for industrial reliability, the compact and waterproof thermal camera supports fixed or mounted installations. Featuring Ethernet and USB interfaces, it delivers 20 Hz imaging and integrates easily into control systems. Additional features include automatic spot detection, analog output (0/4–20 mA), and fieldbus compatibility (Ethernet/IP, Modbus TCP/IP, RS485, Profinet). Optional accessories such as water cooling and air purges extend its use in harsh environments.
