Product Specifications
- Manufacturer
- Rosemount
- Model Number
- 114P
- Product Type
- Protection Tube
- Construction
- Metal tubing with welded end cap
- Immersion Length
- 50 to 400 mm (custom longer available)
- Process Seal
- Flange or machined threaded fitting
- Options
- External Hydrostatic Pressure Test, Dye Penetration Test, Material Certification
- Documents
- Product Specs
Product Description

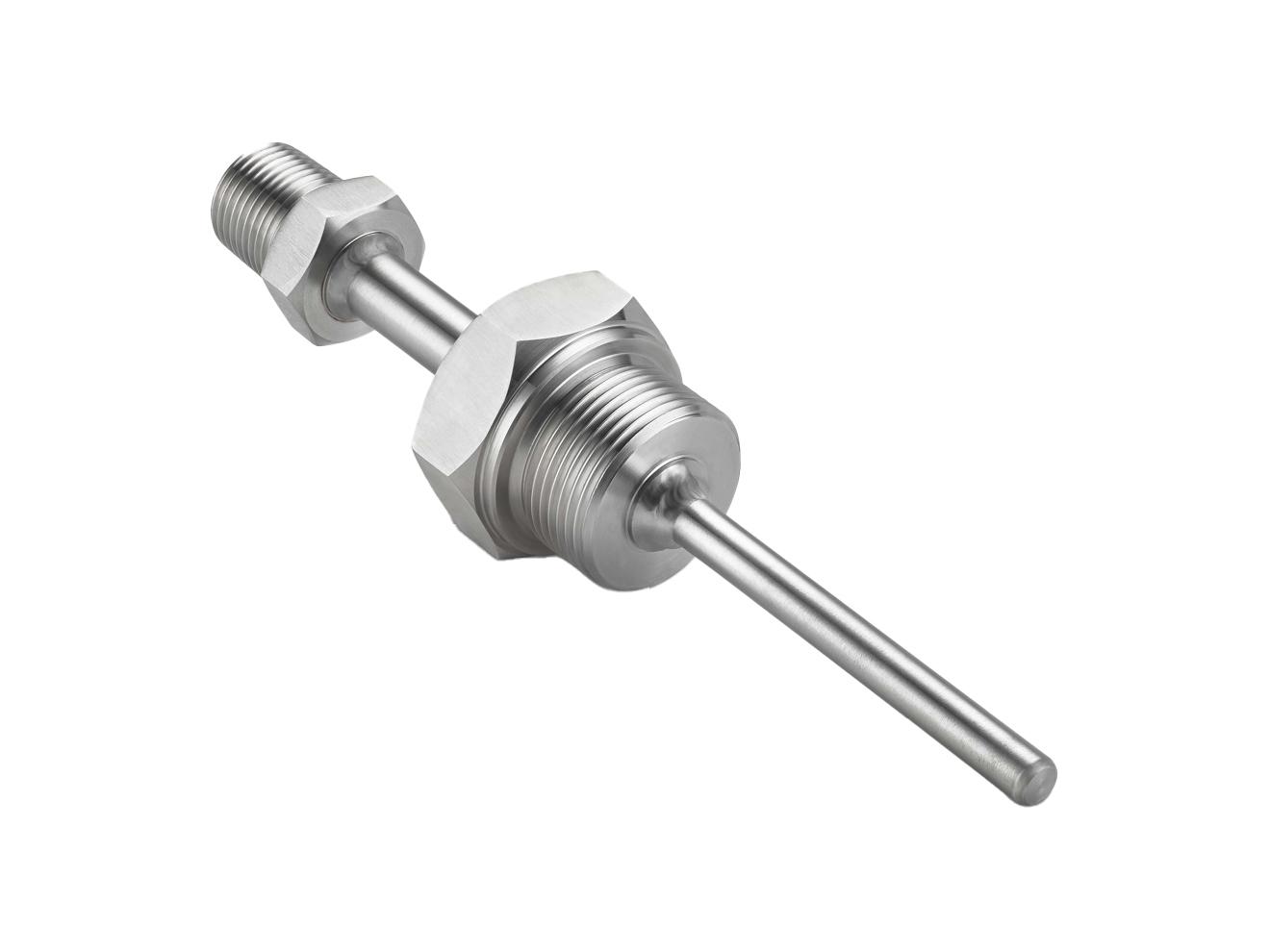

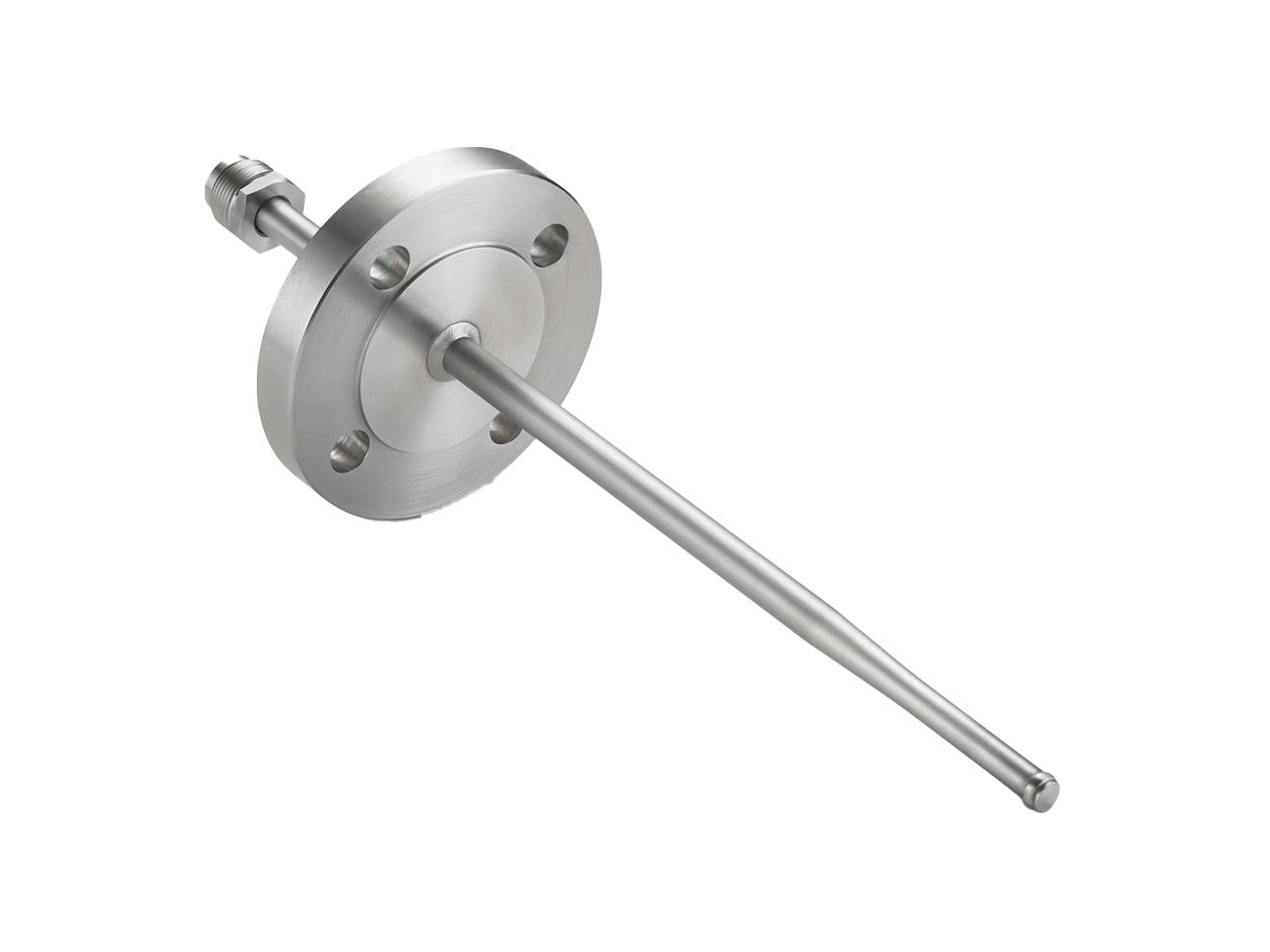

The Rosemount 114P Protection Tubes are manufactured from metal tubing and sealed with a welded end cap on the tip. The process seal is achieved either by a flange or a machined, threaded fitting welded along the tube. Typically, protection tubes have a uniform stem profile, however some industries have specific non-uniform stem profile requirements.
