Product Specifications
- Brand
- Druck
- Model Number
- DPI-104 Kit
- Type
- Pressure Calibration Kit
- Pressure Range
- To 10,000 psi (700 bar)
- Accuracy
- 0.05% FS
- Pump Options
- PV210 (30psi), PV211 (300psi), PV411A (10,000psi)
- Documents
- Product Manual, Product Specs (2 Files)
Product Description

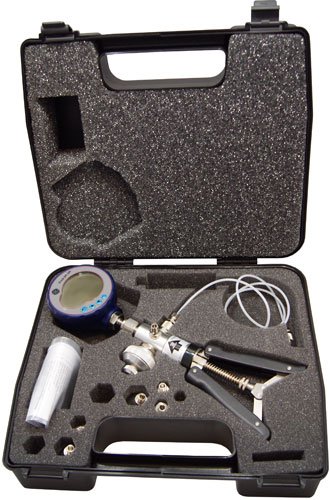

The Druck DPI-104 calibration kit combines the precision DPI 104 digital gauge with one of three hand pumps to provide a complete solution to your pressure calibration needs. Each kit includes all the parts you'll need – including adaptors, hose, and seals – in a convenient carrying case.

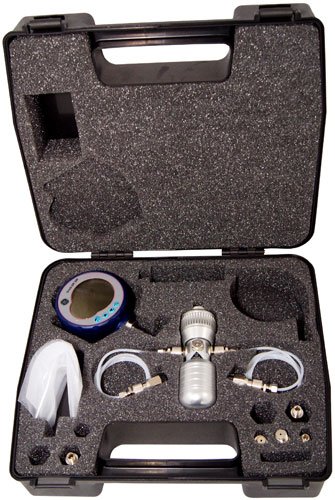

There are four Druck DPI 104 calibration kits available: Low Pressure Pneumatic Test Kit: DPI 104; PV210 low pressure pneumatic test pump, ranges to 30 psi (2 bar), hose, adaptors, seal kit and case. Pneumatic Test Kit: DPI 104; PV211 pneumatic test pump, ranges to 300 psi (20 bar), hose, adaptors, seal kit and case. Pneumatic and Hydraulic Test Kit: DPI 104; PV411A pneumatic and hydraulic test pump , ranges to 10,000 psi (700 bar), hydraulic reservoir, hose, adaptors, seal kit and case.
