Loop Calibrator - 0.01% Accuracy, 100k Data Points | Druck UPS4E

1 / 5

Product Specifications

Manufacturer: Druck
Product Type: Loop Calibrator
Part Number: UPS4E
Source/Measure Range: 0 to 24 mA
Accuracy: 0.01% of reading + 1 count
Display: Dual mA and % readout, linear or flow
Functions: Step, span check, valve check, ramp
Voltage Measurement: 30 VDC, continuity check
Data Logging: 100,000 datalog points
HART Support: Built-in 250Ω resistor
Loop Power: 24 V DC with mA measure or source mode
Auto Shutdown: Yes, conserves battery life
Design: Rugged, pocket-sized, one-hand operation
Documents: Product Specs

Product Description

The Druck UPS4E loop calibrator is a rugged and extremely compact loop calibrator, designed to be operated with one hand. Small enough to fit in the top pocket of an overall, the UPS4E is the latest addition to the Druck "UPS" series, replacing the legacy UPS-II and UPS-III loop calibrators.

The UPS4E is an essential tool for testing and calibrating current loops in industrial control systems. It can source, measure, or simulate a precise electrical current—typically in the 4–20 mA range—allowing technicians to verify the performance of sensors, transmitters, and control systems. It also provides 24V loop power, making it an essential tool for troubleshooting and maintenance in process automation environments.

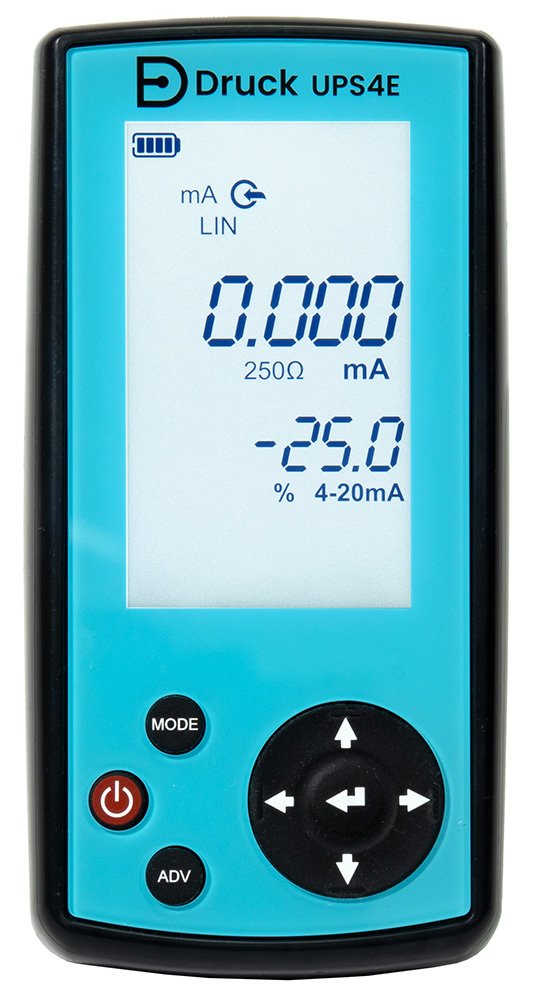

The calibrator has an easy-to-read display and simple-to-use time saving features including step, span, and valve check. Accuracy is 0.01% of reading plus 1 count over the full 0-24mA range. The built-in 250Ω resistor supports HART operation. Data logging capability stores 100,000 points for later analysis.
