Product Specifications
- Manufacturer
- Druck
- Model Number
- DPI 620 Genii
- Type
- Multifunction Process Calibrator
- Functions
- Electrical, frequency, temperature, pressure
- Options
- HART, Foundation Fieldbus
- Display
- Touchscreen, dashboard interface
- Protection
- IP65
- Documents
- Product Specs (2 Files)
Product Description
The Druck DPI 620 Genii Multifunction Calibrator is a flexible modular calibration system that uses three basic components to perform multiple functions that formerly required a wide range of different instruments. The basic component of this system is the Druck DPI 620 Genii multifunction calibrator, a next-generation, ultra-compact, electrical, frequency, and temperature calibrator, which provides simultaneous measurement and source capabilities. Pressure measurement is provided by interchangeable pressure modules that can be attached to the calibrator by a pressure module carrier. Optional HART field communicator would replace the need for a stand-alone HART communication unit. A Foundation Fieldbus communicator is also available as an option. If pressure generation is required, the calibrator and pressure module can be attached to one of three pressure generation stations, to form a high performance, full-integrated pressure calibrator.
Druck DPI 620 Genii multifunction calibrators can measure and source mA, mV, V, Ohms, frequency, and a variety of RTDs and T/Cs. Druck DPI 620 Genii multifunction calibrators provide an isolated 24V loop power supply to energize devices and control loops and a stabilized DC voltage supply for ratio metric transducers. A HART digital configurator is optional for set-up and calibration adjustments of HART devices. As the next generation model, the DPI 620 Genii incorporates an advanced touch screen and new user interface for a flatter menu structure and greater ease-of-use. A completely new digital platform supports HART and Fieldbus applications. The intuitive dashboard allows for quickly launching applications. The compact and lightweight DPI 620 Genii multifunction calibrator is designed for rugged field applications, with a robust casing and weather-proofing to IP 65.

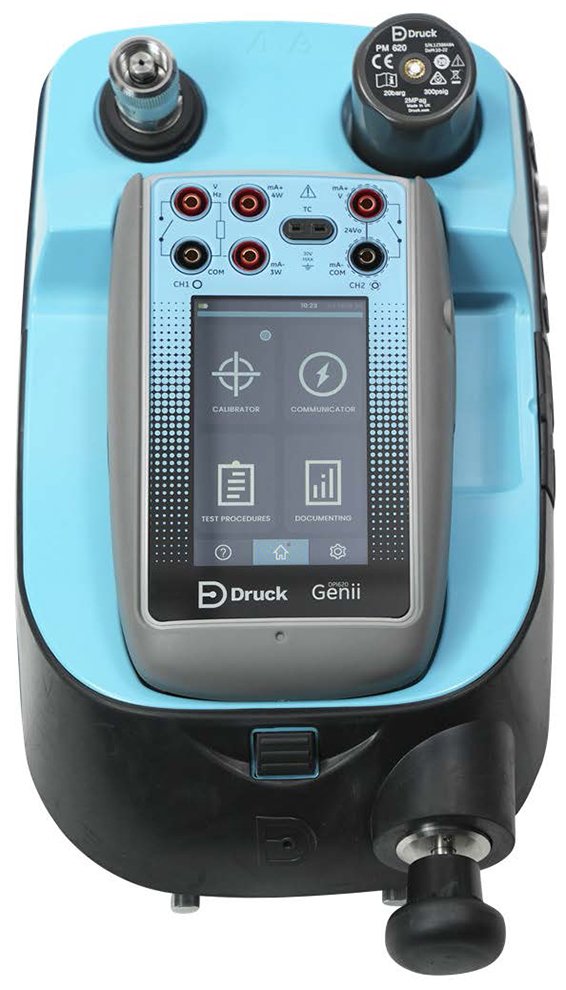

Where pressure generation and control is required, the DPI 620 Genii electrical calibrator pairs with the Druck PV624 pressure controller. Fitted with interchangeable PM620/PM620T pressure modules from the same GENii modular platform, the two form a uniquely capable, flexible, self-contained portable hybrid pressure controller. The PV624 offers a quick and accurate way to hold pressure set points, supports large test volumes and long battery life, and, with its robust design and tool-less pressure connection, is ideally suited to pressure testing and calibration in the field. The PV624 is a separate instrument from the DPI 620 Genii; its datasheet is listed under Documentation.
