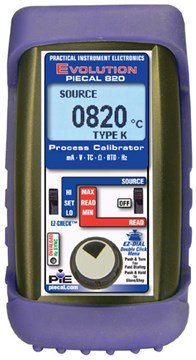

The PIE 820 / 820PM multifunction process calibrator combines all milliamp loop functions, sources and reads DC Volts and millivolts, 14 thermocouple types, RTD curves, ohms, and process frequency signals.

It sources and reads types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P (Platinel II) thermocouples. It also sources and reads Pt100 Ohm (3850, 3902, 3916, 3926) and 1000 Ohm (3850) Copper 10 & 50 Ohm, Nickel 100 and 120 Ohm RTDs.

All ranges have auto storing MIN/MAX readings and three output set points for fast calibration of zero, midpoint, and span. Advanced features include automatic detection of 2, 3, and 4 wire RTDs plus configurable automatic stepping and ramping.

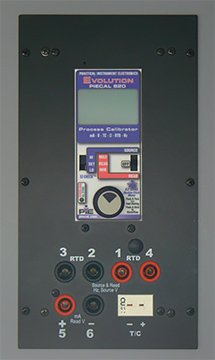

The PIE 820PM is the panel mount version of the PIE 820, and includes 8.75in x 4.75in aluminum mounting plate, screws, and an 110/120V AC adapter. Available configurations: PIE 820-BP (rubber boot, NIST certificate), PIE 820 (rubber boot, carrying case, test leads, NIST certificate), PIE 820PM (panel mount version).
