Product Specifications

Product Description

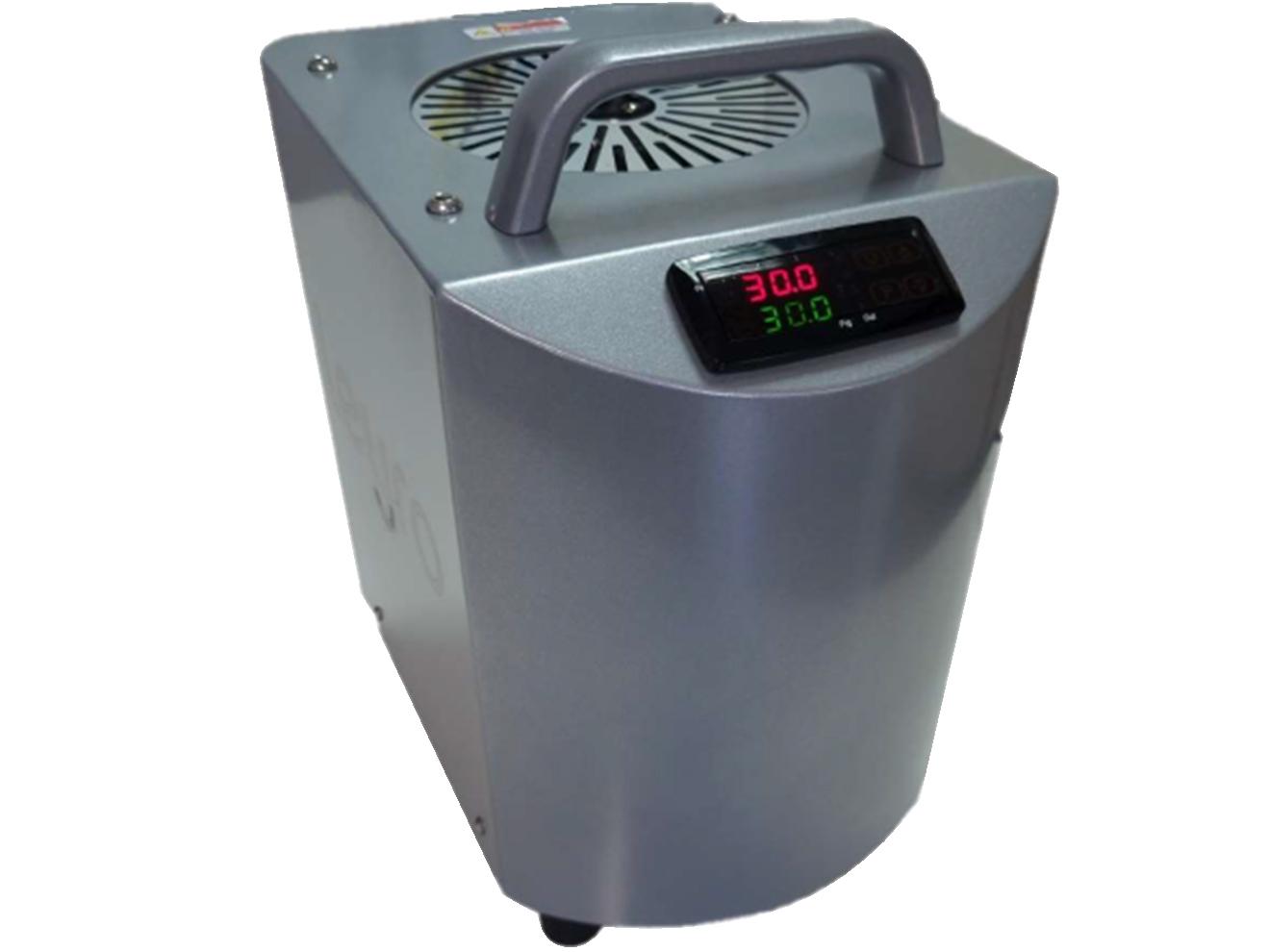

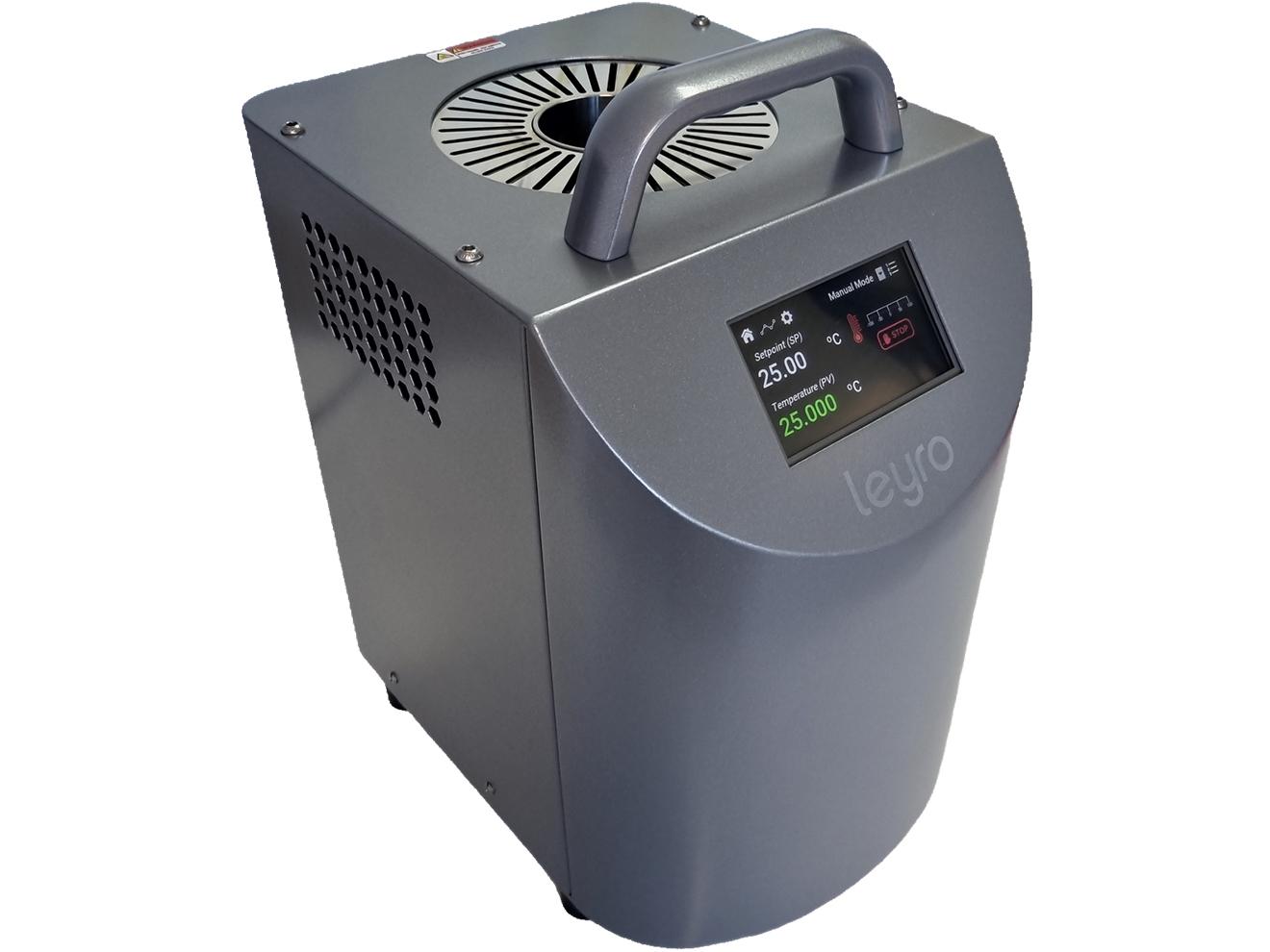

The Leyro LHC 400 dry block temperature calibrator is a portable device designed for precise calibration of probes and thermocouples. The basic model features a dual display with 0.18°F resolution, ±0.09°F uniformity, and ±0.018°F stability, while the advanced model offers selectable resolutions of 0.18°F, 0.018°F, or 0.0018°F, ±0.054°F uniformity, and stability of ±0.072°F. Both models operate across a temperature range of 104 to 842°F with an accuracy of ±0.18°F.

Its durable aluminum dry block and wide selection of interchangeable inserts accommodate various sensor sizes and types, making it versatile for use in multiple industries. With an immersion depth of 165mm, the LHC 400 ensures secure and stable probe placement. The device offers intuitive menu controls with up to 10 calibration points and optional RS485 Modbus RTU communication for seamless integration into external systems.

The LHC 400 heats from 122 to 797°F in 22 minutes and cools from 797 to 212°F in 35 minutes. Along with a 3-year warranty, the LHC 400 is built for reliable performance in demanding environments such as calibration laboratories, testing laboratories, universities and R&D centers, chemical and pharmaceutical industries, and the food industry.

Related Products

  1. Leyro Instruments LHC 75 — Fast-heating portable dry block
  2. Leyro Instruments LHC 40 Basic / LHC 40 Advance — Versatile low-temp dry block
Leyro Instruments
Compare

Dry Block Temperature Calibrator - 104-842°F, Basic/Advance | Leyro LHC 400

High-temp dry block
MPN/Series: LHC 400 Basic / LHC 400 Advance

Product Specifications

Manufacturer
Leyro Instruments
Product Type
Dry Block Temperature Calibrator
Part Number
LHC 400 Basic, LHC 400 Advance
Temperature Range
104 to 842°F (40 to 450°C)
Accuracy
±0.18°F (±0.1°C)
Immersion Depth
165mm
Dry Block Material
Aluminum
Stability (Basic)
±0.018°F (±0.01°C)
Stability (Advance)
±0.072°F (±0.04°C)
Uniformity (Basic)
±0.09°F (±0.05°C)
Uniformity (Advance)
±0.054°F (±0.03°C)
Resolution (Basic)
0.18°F (0.1°C)
Resolution (Advance)
Selectable 0.18°F / 0.018°F / 0.0018°F
Calibration Points
Up to 10
Communication
RS485 Modbus RTU (DB9) optional
Power
100-234VAC, 50/60Hz, approx 1800W
Heating Time
22 min (122 to 797°F)
Cooling Time
35 min (797 to 212°F)
Documents
Product Manual, Product Specs (2 Files)
