Product Specifications
- Manufacturer
- Leyro Instruments
- Product Type
- Dry Block Temperature Calibrator
- Part Number
- LHC 650
- Temperature Range
- 104 to 1202°F (40 to 650°C)
- Accuracy
- ±0.72°F (±0.4°C)
- Stability
- ±0.09°F (±0.05°C)
- Uniformity
- ±0.09°F (±0.05°C)
- Resolution
- 0.18°F (0.1°C)
- Immersion Depth
- 150mm
- Calibration Points
- Up to 10 adjustable
- Display
- Dual-display interface
- Communication
- RS485 Modbus RTU (DB9) optional
- Power
- 100-234VAC, 50/60Hz, approx 1200W
- Heating Time
- 20 min (122 to 1112°F)
- Cooling Time
- 35 min (1112 to 212°F)
- Documents
- Product Manual, Product Specs
Product Description

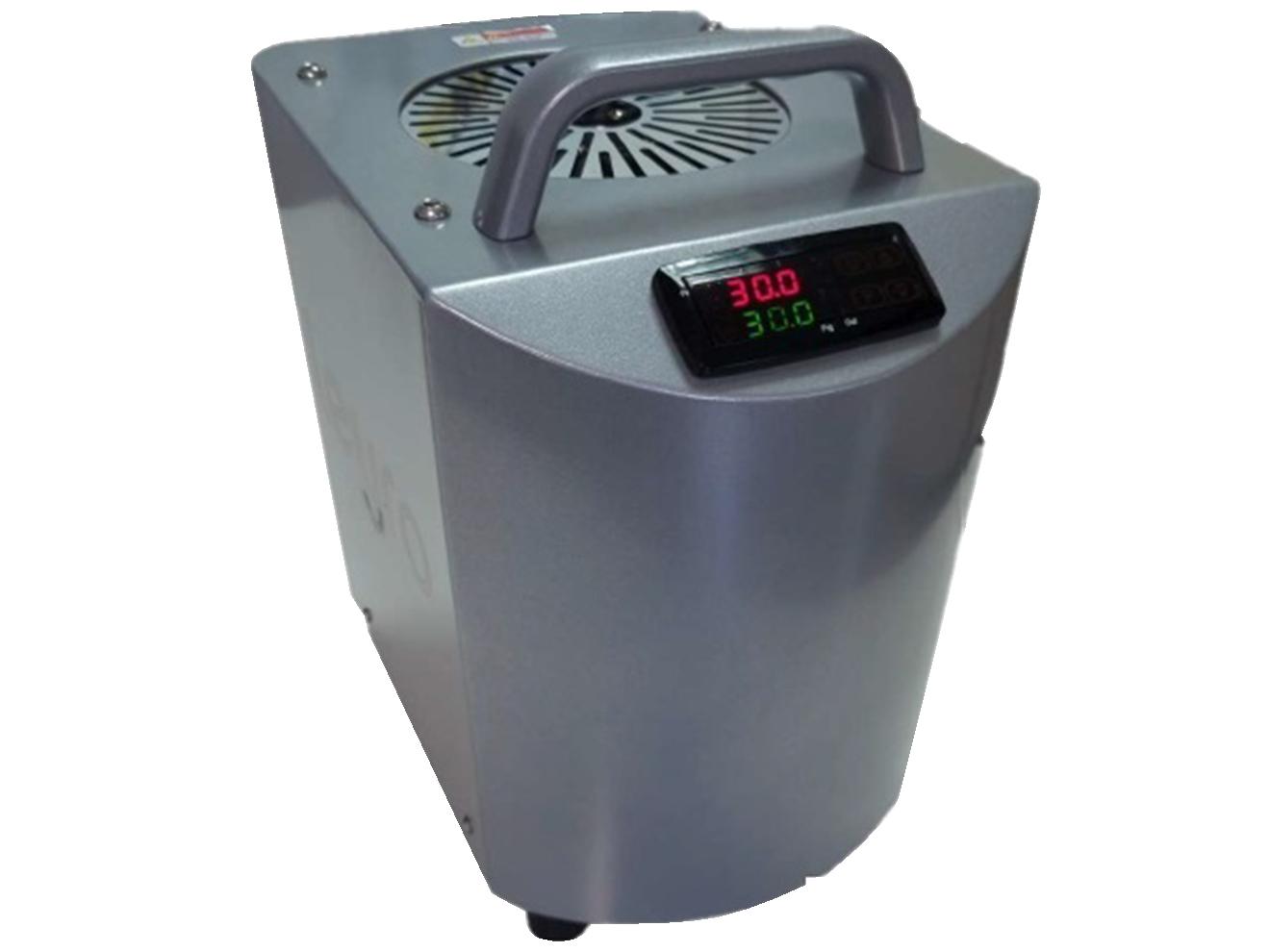

The Leyro LHC 650 dry block temperature calibrator is designed for precise temperature calibration across a wide range of industrial and laboratory environments. With a temperature operating range of 104 to 1202°F, the unit offers ±0.72°F accuracy, ±0.09°F stability, and a resolution of 0.18°F. A dual-display interface with intuitive menu navigation allows users to store and adjust up to 10 calibration points for added flexibility.
The device operates on 100 to 234Vac at 50/60Hz and consumes approximately 1,200W. It comes standard with a universal power cord, insert extractor, instruction manual, and a traceable calibration certificate with 10 reference points. A 3-year manufacturer warranty is included for added assurance.
Optional features include a variety of interchangeable inserts for different probe sizes, a trolley case for easier transport, and RS485 ModBus RTU communication for remote connectivity. With fast warm-up and cool-down times (20 minutes from 122 to 1112°F, 35 minutes from 1112 to 212°F), a rugged portable housing, and high uniformity, the LHC 650 is well suited for demanding calibration tasks in both field and laboratory settings, including calibration laboratories, testing laboratories, universities and R&D centers, chemical and pharmaceutical industries, and the food industry.
