The Isotech Drago 4934 temperature calibrator provides an adjustable isothermal enclosure for calibration purposes. It is part of the award-winning Isocal-6 family and with a reference probe can be used with different accessories for Dry Block, Infrared, Surface Calibration and even with ITS-90 Fixed Point Cells for uncertainties to 0.001°C. In Dry Block Mode, the large 65mm diameter block allows for the calibration of either larger probes or for calibrating many sensors simultaneously.

Basic Model: Digital display of set and nominal block temperature; Use with a separate external indicator to compensate for gradients and loading; Calibrator does not need calibrating; only the indicator & sensor need re-calibration; Cal Notepad software; Serial PC interface.

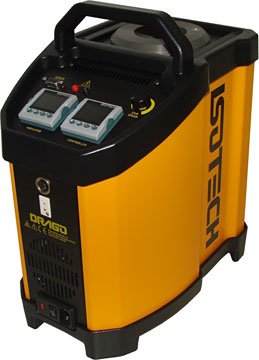

Site Model: Digital display of set and nominal block temperature; Single channel indicator for reference probe; Best Practice calibration with established traceability and uncertainty; Re-calibration requires sending whole unit in; Cal Notepad software; Serial PC interface.

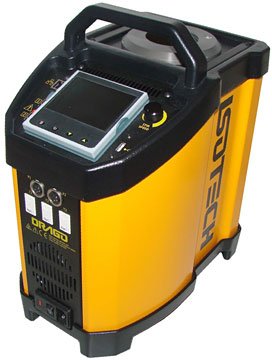

Advanced Model: Digital display of set and nominal block temperature; Three channel indicator for reference probe and units under test; Advanced features including automatic temperature cycling and logging; Best Practice calibration with established traceability and uncertainty; Re-calibration requires sending whole unit in; I-Cal Easy LOG software & built-in web server; Ethernet & USB host PC interface.

Isotech
Compare

Multi-Function Temperature Calibrator - 30-250°C | Isotech Drago 4934

30-250°C, stability ±0.005°C (Advanced), 65mm block
MPN/Series: Drago 4934

Product Specifications

Manufacturer
Isotech
Model Number
Drago 4934
Type
Temperature Calibrator
Range
30 to 250°C
Block Size
65 mm diameter x 160 mm deep
Stability
Basic/Site: ±0.03°C; Advanced: ±0.005°C
Accessories
Dry block, liquid bath, infrared, surface, ITS-90 fixed point cells
Documents
Product Manual, Product Specs
