Product Specifications
- Manufacturer
- Leyro Instruments
- Product Type
- Dual-Mode Temperature Calibrator (Dry Block / Liquid Bath)
- Part Number
- LCB 30 Basic, LCB 30 Advance, LCB 30+ COOL Basic, LCB 30+ COOL Advance
- Temperature Range (LCB 30)
- -31 to 329°F (-35 to 165°C)
- Temperature Range (LCB 30+ COOL)
- -40 to 284°F (-40 to 140°C)
- Accuracy
- ±0.18°F (±0.1°C)
- Immersion Depth
- 190mm
- Calibration Volume
- 60mm diameter x 190mm
- Stability (Basic)
- ±0.018°F (±0.01°C)
- Stability (Advance)
- ±0.008°F (±0.0045°C)
- Uniformity (Liquid Bath)
- ±0.054°F (±0.03°C)
- Uniformity (Dry Block)
- ±0.09°F (±0.05°C)
- Resolution (Basic)
- 0.18°F (0.1°C)
- Resolution (Advance)
- Selectable 0.18°F / 0.018°F / 0.0018°F
- Display (Advance)
- 4.3-inch color touchscreen
- Communication
- RS485 Modbus RTU (DB9) optional
- Power
- 100-234VAC, 50/60Hz
- Heating Time
- 15 min (23 to 212°F)
- Warranty
- 3 years
- Documents
- Product Manual, Product Specs (4 Files)
Product Description
The Leyro LCB 30 temperature calibrator delivers precise, flexible temperature calibration for both dry block and liquid bath applications. The series includes four models: LCB 30 Basic, LCB 30 Advance, LCB 30+ Cool Basic, and LCB 30+ Cool Advance, each designed to support the needs of laboratories, R&D departments, and industrial environments. All models are portable, featuring a standard calibration volume of 60mm diameter x 190mm for versatile probe compatibility.

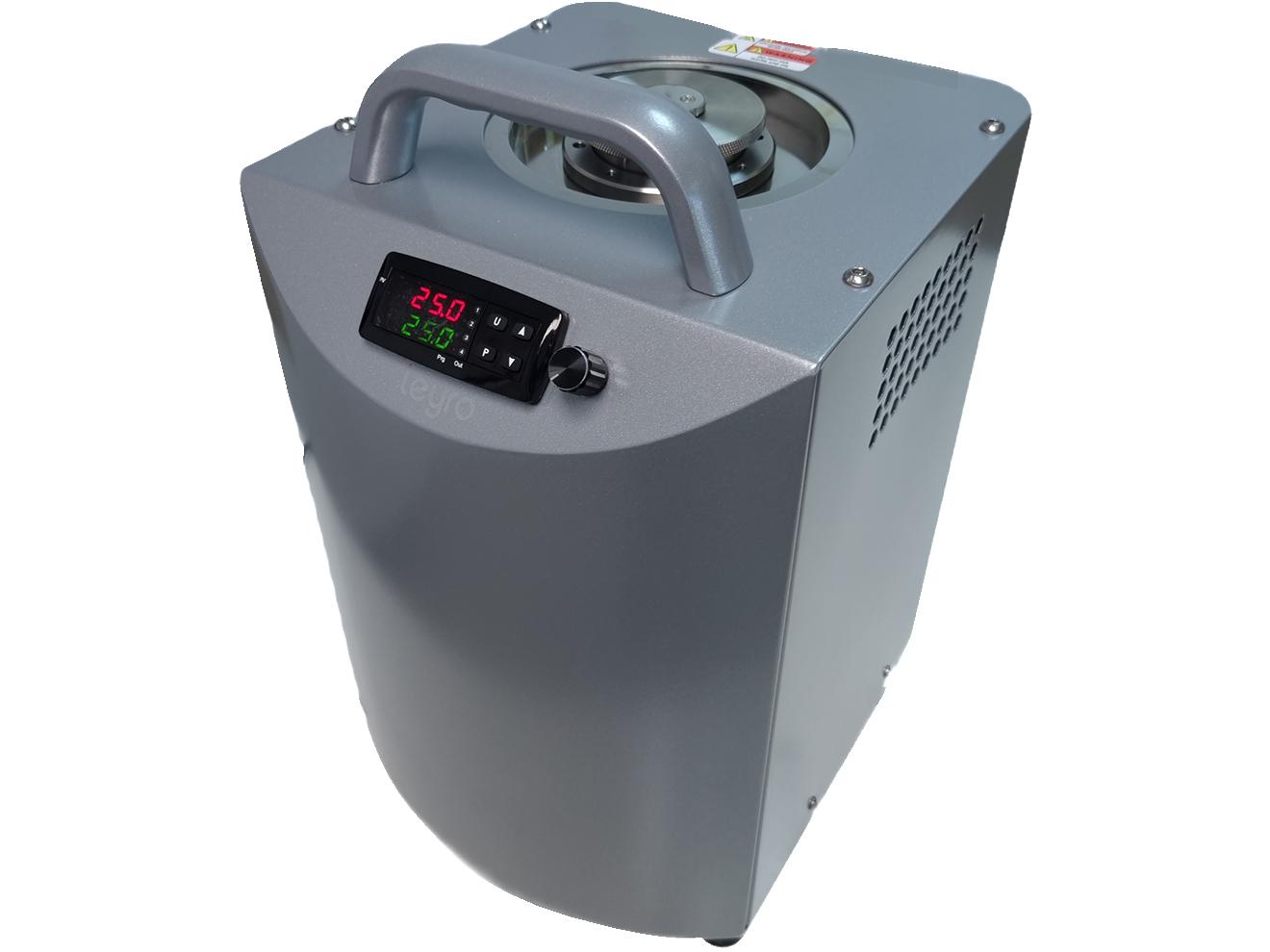

The LCB 30 Basic and LCB 30+ Cool Basic models feature intuitive controls and offer temperature ranges of -31 to 329°F and -40 to 284°F respectively. They deliver accuracy of ±0.18°F, stability of ±0.018°F, and 0.18°F resolution. These models are ideal for routine calibration tasks and enable quick switching between dry block and liquid bath modes. The LCB 30+ Cool Basic model includes integrated cooling, expanding its use to sub-zero calibration environments.

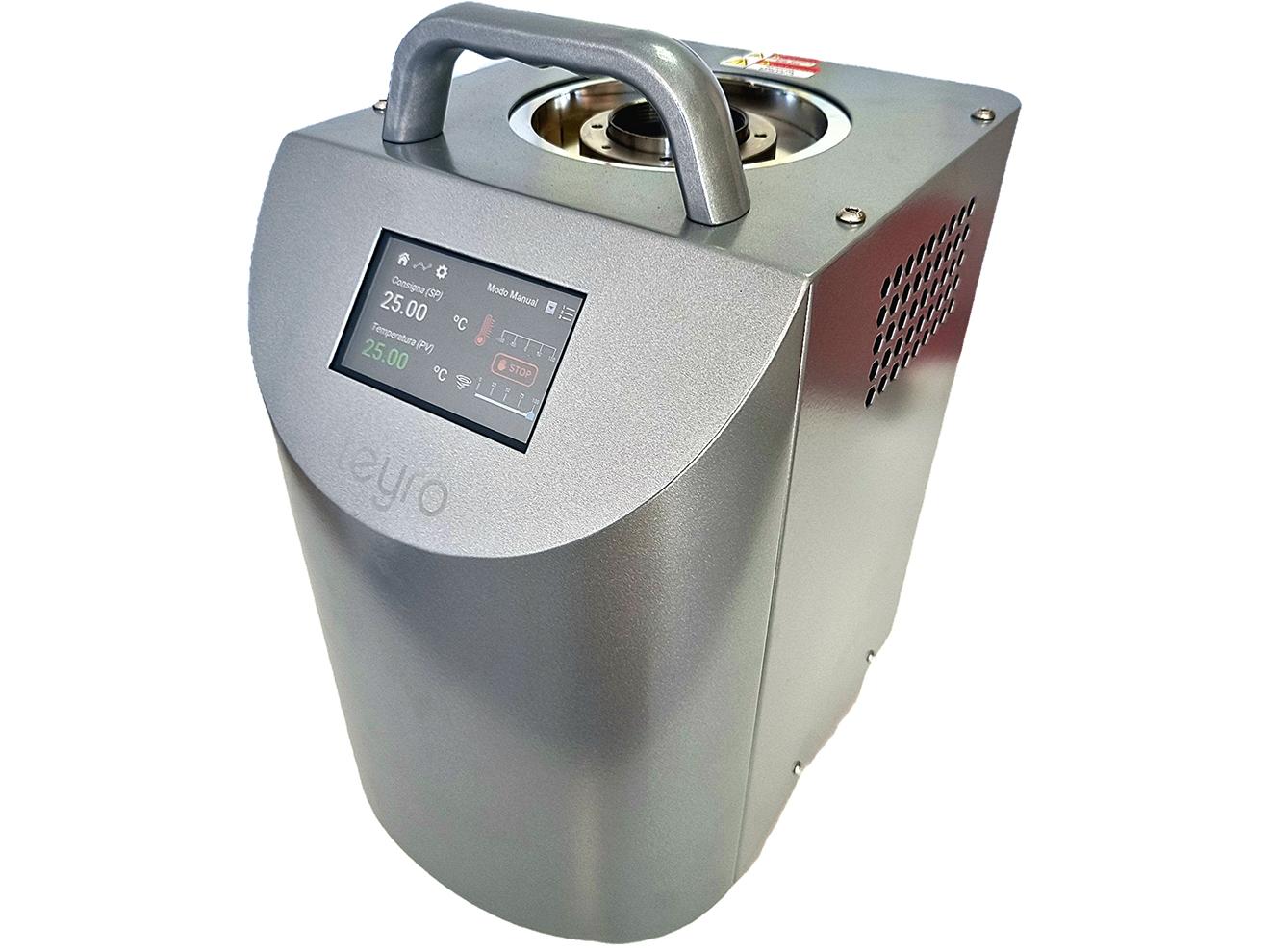

The LCB 30 Advance and LCB 30+ Cool Advance models include a 4.3-inch color touchscreen, selectable resolution (0.18°F / 0.018°F / 0.0018°F), and improved stability of ±0.008°F. Advanced features include programmable calibration profiles, trend graph visualization, and multilingual support, making them ideal for complex, high-precision applications. Optional RS485 Modbus RTU communication and ISO 17025 certification support compliance in regulated environments. All models come with a 3-year warranty.
